Tiled Sky Pavilion: Reinterpreting Architectural Intervention
Re-reading Architecture Intervention: From Technology to the Reinterpretation of Construction
Reconsidering Traditional Construction Systems
The project explores a type of architectural intervention that is not based on the introduction of complex technologies or advanced technological solutions, but rather relies primarily on the precise reinterpretation of traditional building systems. Through this approach, new spatial, environmental, and functional conditions are generated without altering the essence of the existing structural logic. Thus, the focus shifts toward the latent potentials of simple materials and systems instead of replacing them.
The Roof as an Active Environmental Device
At the core of this approach, the design of the roof emerges as a central element. A responsive roof surface is developed based on a unified structural system that combines opaque ceramic tiles and glass tiles within the same assembly. Nevertheless, the system retains a coherent structural and engineering logic. Consequently, the roof is no longer merely a building cover; it gradually transforms into an environmental device that filters natural light, registers the passage of time, and produces continuously changing interior atmospheres.
At the core of this approach, the Design of the roof emerges as a central element. A responsive roof surface is developed based on a unified structural system that combines opaque ceramic tiles and glass tiles within the same assembly.
Rehabilitating a building with a Flexible Function
Within the intervention context, an existing building previously used as a stable and hay storage facility, connected to a nearby dwelling, is reworked. Its architectural reinterpretation allows it to be redefined as an independent element within the building complex. It is then repurposed as a multifunctional pavilion intended for collective activities, without a fixed program or permanent use.
Programmatic Ambiguity as a Design Tool
Moreover, this functional ambiguity becomes a key element in the rehabilitation strategy. It enables the building to adapt to diverse uses such as gatherings, celebrations, and temporary activities. At the same time, this approach preserves the original structural character, without resorting to excessive technologies or rigid regulatory processes that could undermine its material identity.
Environment as Part of the Architectural Experience
As a result, elements such as natural ventilation, filtered light, and daily environmental variations become active components of the architectural experience. The building is thus not perceived as a static container, but as a dynamic environment that continuously interacts with time, light, and use.
| Field | Value |
|---|---|
| Architects | Ana María Flor, Héctor Navarro + ARKHITEKTON, Rodia Valladares |
| Area | 200 m² |
| Year | 2026 |
| Photographs | William Mulvihill |
| Manufacturers | Cobert tiles |
| Lead Architects | Héctor Navarro + arkhitekton |
| Category | Mixed Use Architecture |
| Design Team | Laura Fernández |
| City | Golbardo |
| Country | Spain |
The Building as Temporal Layers: A Reading of the “Constructive Trace”
Architecture as a Superimposed Constructive Field
The project begins from an understanding of the building as a multi-temporal construction layer, or what can be described as a “superimposed constructive field.” From this perspective, material elements such as stone walls, variations in openings, and different structural solutions reveal a building that was not formed in a single moment, but rather evolved gradually through successive temporal phases. Consequently, these changes are not perceived as visual noise, but as an essential component of the site’s identity.
Integrating Memory Rather Than Erasing It
Instead of removing or concealing traces of previous transformations, the intervention engages with them as a cognitive layer that reflects the building’s history. Accordingly, these accumulations become part of the architectural reading, where the existing structure is understood as an open system capable of change, while simultaneously retaining its material and constructive memory. Thus, the building becomes a living record of processes of adaptation and modification over time.
The Roof as an Exposed Structural Logic
In contrast, the design focuses primarily on the roof as the decisive structural element of the project. A structural solution is adopted that aims to fully liberate the interior space from any intermediary elements, such as trusses or additional supports. As a result, the space becomes more open and visually and functionally legible.
Liberating the Interior Space

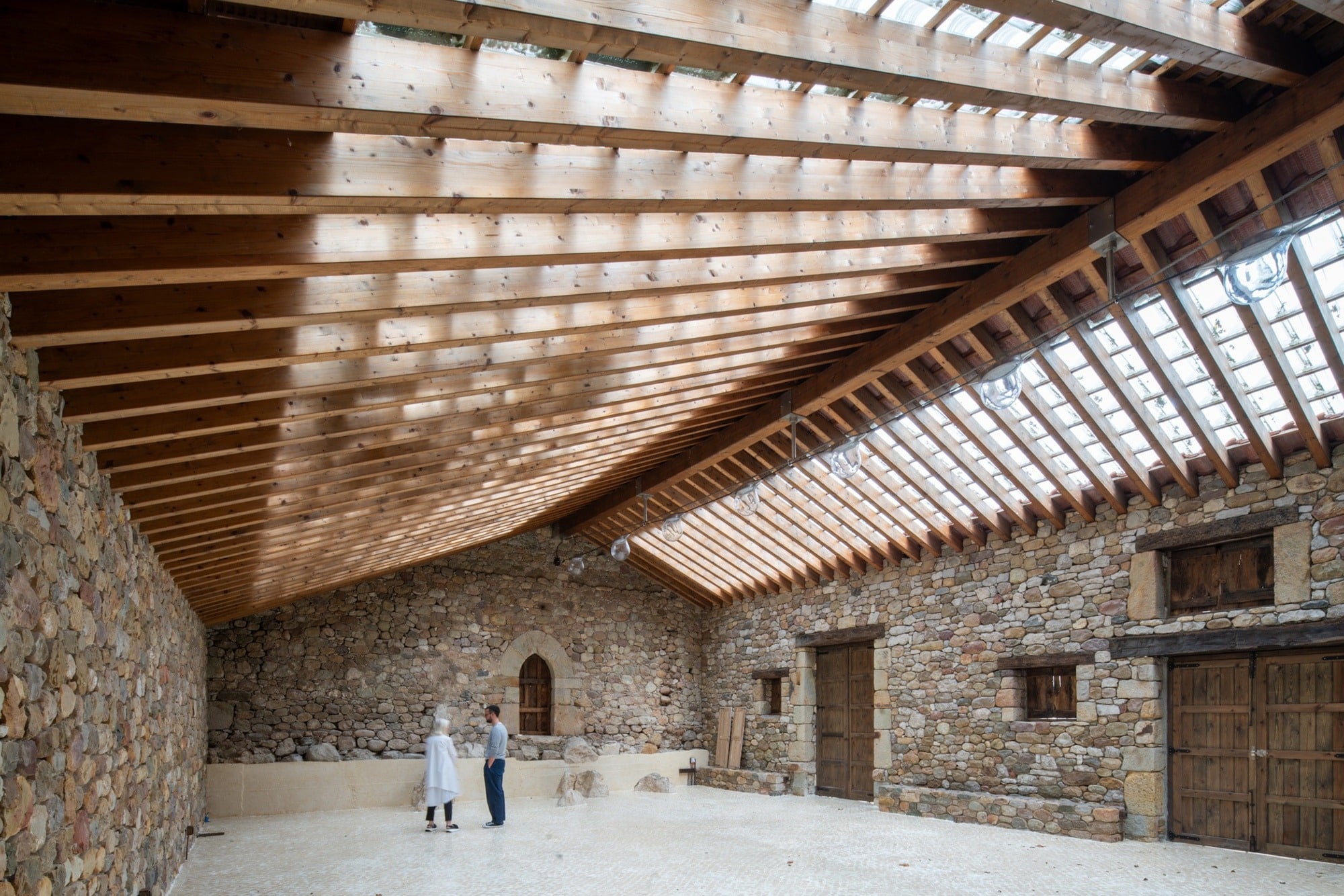

The use of a main ridge beam, combined with a stainless-steel tension tie, allows for spanning a structural distance of up to 15 meters. From this primary framework, wooden beams extend, resting directly on the longitudinal load-bearing walls as well as on the ridge beam. Consequently, a clear and legible structural system is formed, reflecting coherence with the original character of the building.
Furthermore, the system avoids the addition of unnecessary structural layers, while leaving the underside of the tiles exposed toward the interior. Thus, the logic of Construction is not concealed but becomes part of the spatial experience itself. In this way, the construction process is presented as a complementary element of the space, contributing to the identity of the architectural pavilion rather than remaining hidden backstage.
The Roof as an Intermediate Facade Between Interior and Nature
Redefining the Function of the Roof
In this context, the roof shifts from a conventional structural element into an intermediate facade that simultaneously separates and connects a controlled interior environment with the natural conditions of the site. Consequently, its role is no longer limited to protection or enclosure, but becomes an active component in shaping spatial experience. Moreover, the tiles, instead of functioning as a final finishing layer, are reinterpreted as a structural element contributing to the production of space and the articulation of its atmosphere.
Light as a Dynamic Temporal Factor
Furthermore, the roof acquires a sensitive relationship with light and time, operating as a device that continuously reshapes the visual perception of space throughout the day. In this sense, light is not a fixed condition but a constantly changing element that introduces a temporal dimension into the architectural experience, placing the space in a continuous state of transformation.
Gradual Transparency and the Reconfiguration of Boundaries
Glass Tiles and the Living Roof

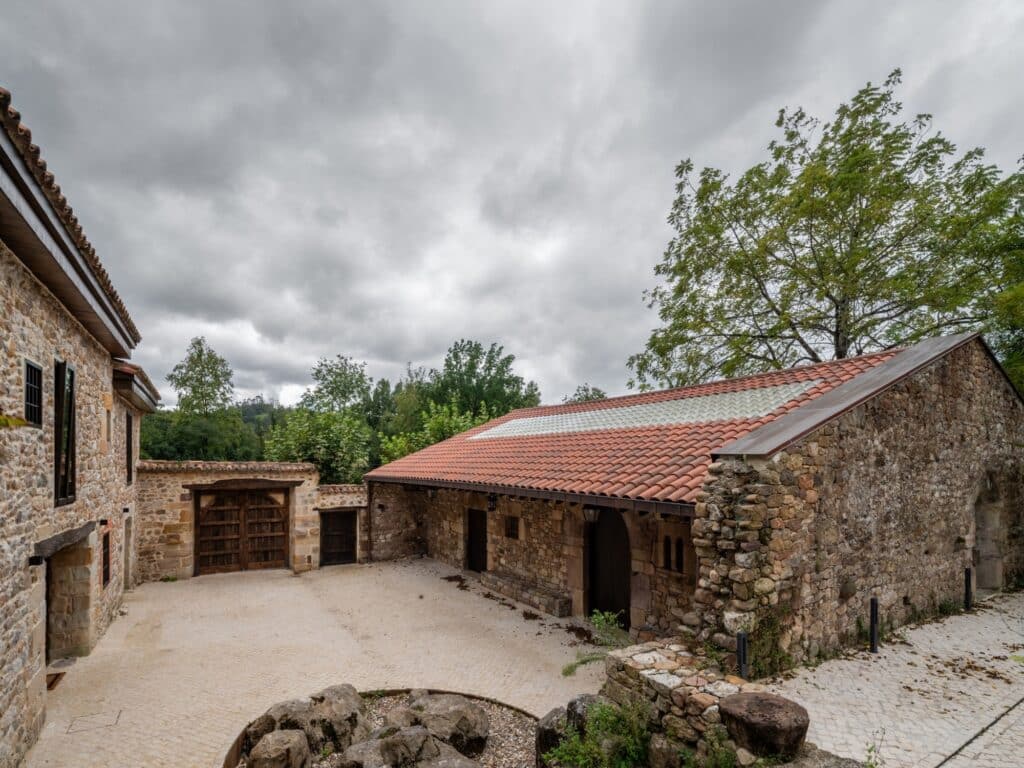

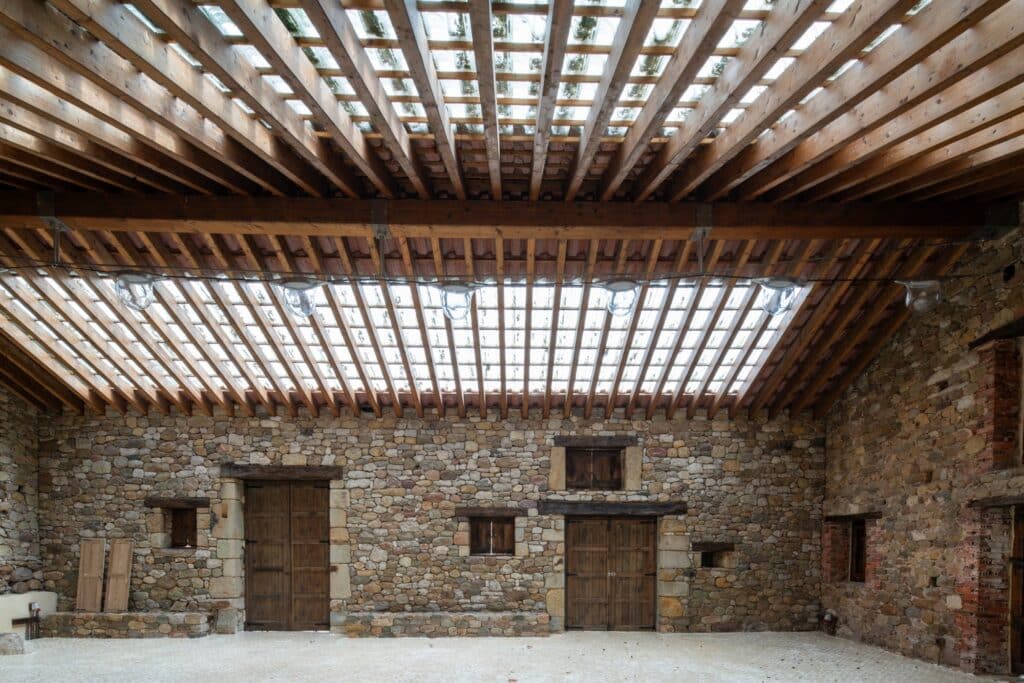

On another level, the integration of continuous surfaces of glass tiles within the same system generates varying degrees of light and transparency. As a result, what can be described as an “internal sky” is formed, constantly shifting and reinforcing the sense of an intermediate condition between interior and exterior, without a clear separation between the two.
The Ground as an Extension of the Natural Landscape

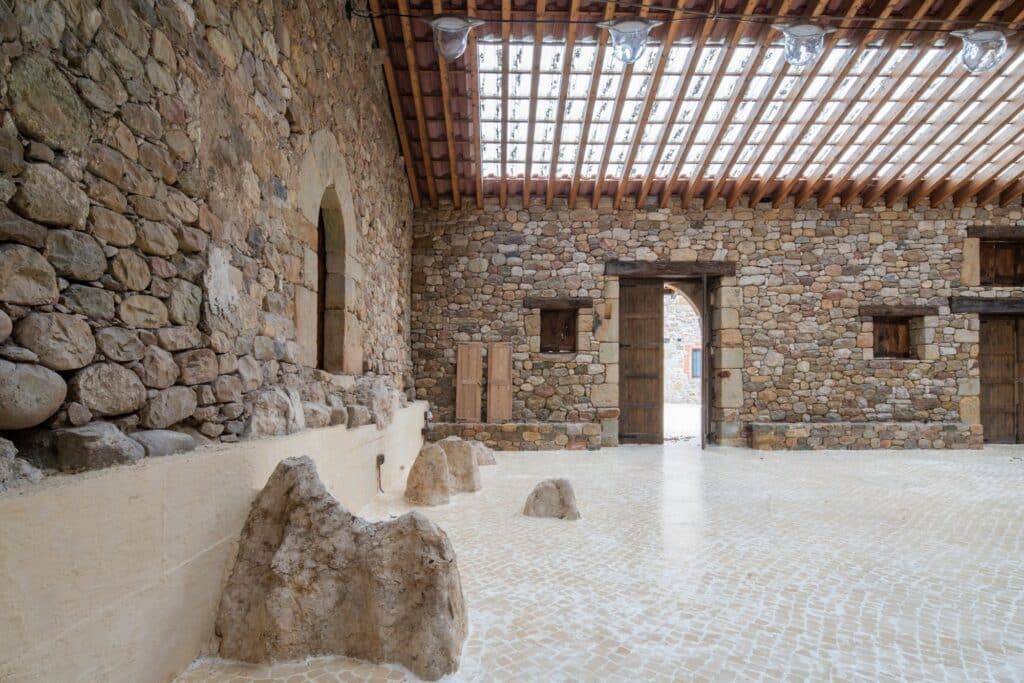

In parallel, limestone is used for paving the floor as an external surface extended into the architectural space. This choice establishes a direct relationship with the surrounding karst landscape and helps dissolve the boundary between the building and its natural context. Consequently, the space becomes an extension of the site rather than an isolated architectural object.
Architecture as a Mediator Between Matter and Light
Rehabilitation Based on Activation Rather Than Transformation
At its core, the project proposes an approach to rehabilitation grounded in constructive precision and conceptual clarity. Instead of seeking to correct or homogenize the existing building, the intervention focuses on activating its latent spatial and environmental potential. Thus, the existing structure is treated as a material open to reinterpretation rather than something that requires replacement.
A Flexible and Multi-Use Space
Ultimately, architecture here operates as a mediator between matter and light, and between past and present. In doing so, it produces an open and flexible space capable of accommodating diverse forms of collective use, through a careful and respectful reading of the built fabric, without imposing a new identity upon it, but rather revealing and reactivating what is already there.
✦ ArchUp Editorial Insight
Projects like Tiled Sky Pavilion emerge from an investment-driven logic based on the adaptive reuse of abandoned agricultural buildings within low-cost reuse policies. The intervention is not driven by formal ambition, but rather by financial feasibility linked to minimizing the costs of demolition and new construction. The primary driver lies in transforming former storage units and stables into multi-use spaces within regulatory frameworks that allow for minimal structural modification.
Regulatory constraints appear in the requirements to preserve the load-bearing structure, safety standards, and limits on intervention in existing structural systems, which collectively shift the design focus toward the roof envelope. As a result, a composite roofing system of ceramic and glass tiles is developed as a mediating solution between natural lighting conditions and structural stability requirements. Architecture here becomes a direct outcome of balancing material efficiency, construction speed, and resource limitation, with the role of the architectural author receding in favor of systemic and infrastructural logic.
