Gardens by the Bay Engineering a Sustainable Vertical Forest

Introduction and Strategic Vision: A “City in a Garden”

The National Mandate for a Green Metropolis

Singapore’s “Gardens by the Bay” is not merely a botanical garden; it stands as a profound statement of national identity and a strategic Project to transform the nation from a “Garden City” into a “City in a Garden.” Located on 101 hectares of reclaimed land in central Singapore, the primary goal was to create a world-class leisure destination that would enhance the quality of life for its citizens. Furthermore, the government and designers intended it to showcase Singapore as a global leader in environmental Sustainability and innovative green technology. Consequently, the project blends nature, Architecture, and engineering in an unprecedented way.

The Three Pillars: Nature, Technology, and Community

The Design brief, which Grant Associates (landscape) and WilkinsonEyre (conservatories) executed, rested on three pillars. First, to create a stunning botanical display (Nature). Second, to embed advanced environmental technologies as functional processes (Technology). Third, to create an accessible and beloved public space for all (Community). Therefore, the challenge was not just to build structures, but to create a living, breathing ecosystem that was both beautiful and self-sufficient.

The “Supertrees”: Vertical Gardens as Ecological Engines

Structural Design of the Supertrees

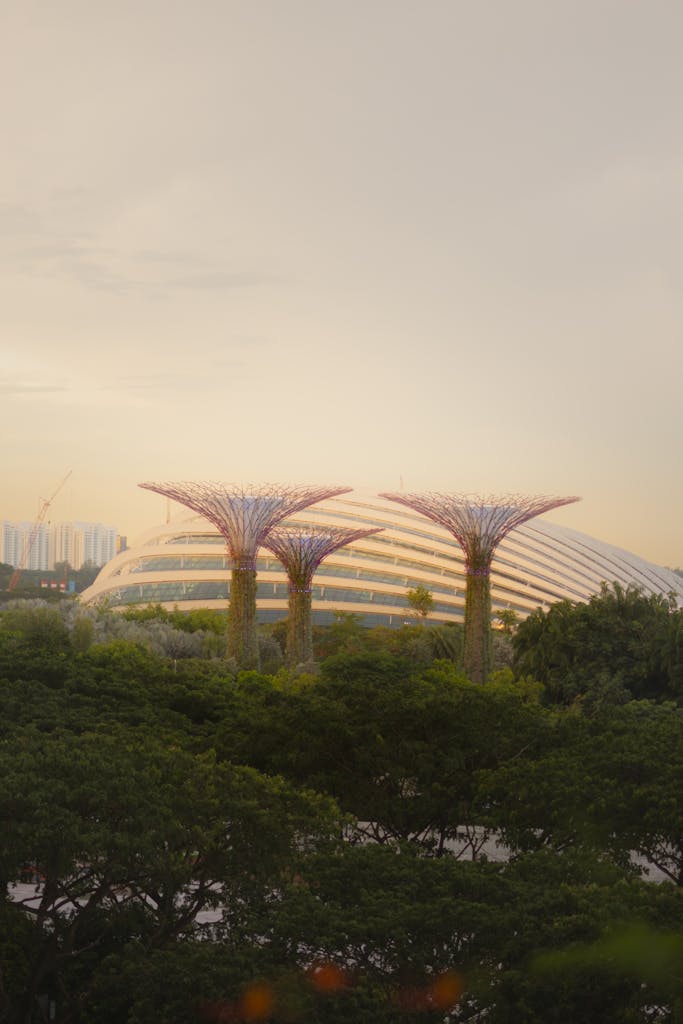

The most iconic element of the gardens is the grove of 18 “Supertrees.” These vertical structures range from 25 to 50 meters in height. These are not sculptures; they are highly complex functional towers. Each Supertree has a core structural “trunk” made of reinforced concrete. A meticulously welded steel frame “canopy” then surrounds this trunk. Crucially, this steel frame serves as the support structure for a vast skin of living plants a vertical garden containing over 162,900 plants of more than 200 species.

The Ecological Function: Beyond Aesthetics

The true genius of the Supertrees lies in their hidden engineering, a core part of the project’s Architectural Research. They act as the ecological engines for the entire park:

1. Energy Generation: Engineers equipped eleven of the Supertrees with photovoltaic panels (solar cells) on their canopies. These panels harvest solar energy to help power the gardens, particularly the lighting.
2. Water Harvesting: The design shapes the large canopies to collect rainwater. The system then channels this water down the trunk and stores it for use in the park’s irrigation systems.
3. Ventilation Exhaust: The Supertrees also act as giant exhaust chimneys for the park’s underground biomass boilers, discreetly venting hot air far above the ground level.This integration makes them a masterclass in multifunctional Design.

The Conservatories: Creating Cool Worlds Without Columns

The “Cloud Forest” and “Flower Dome”

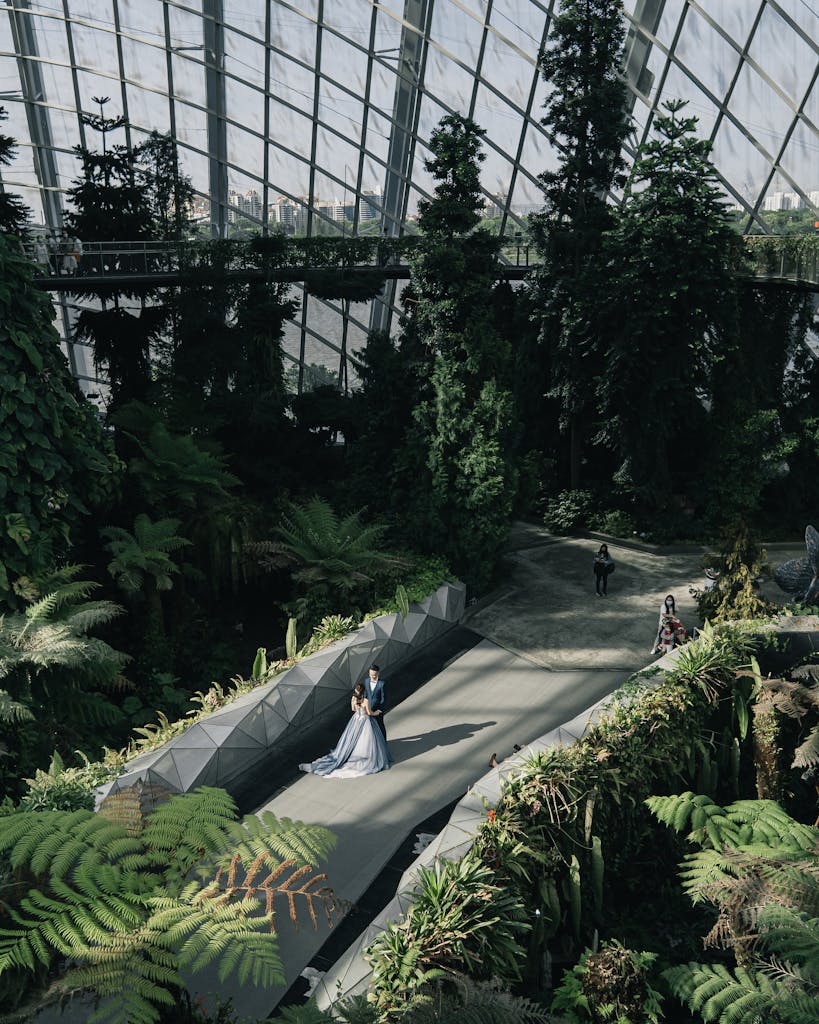

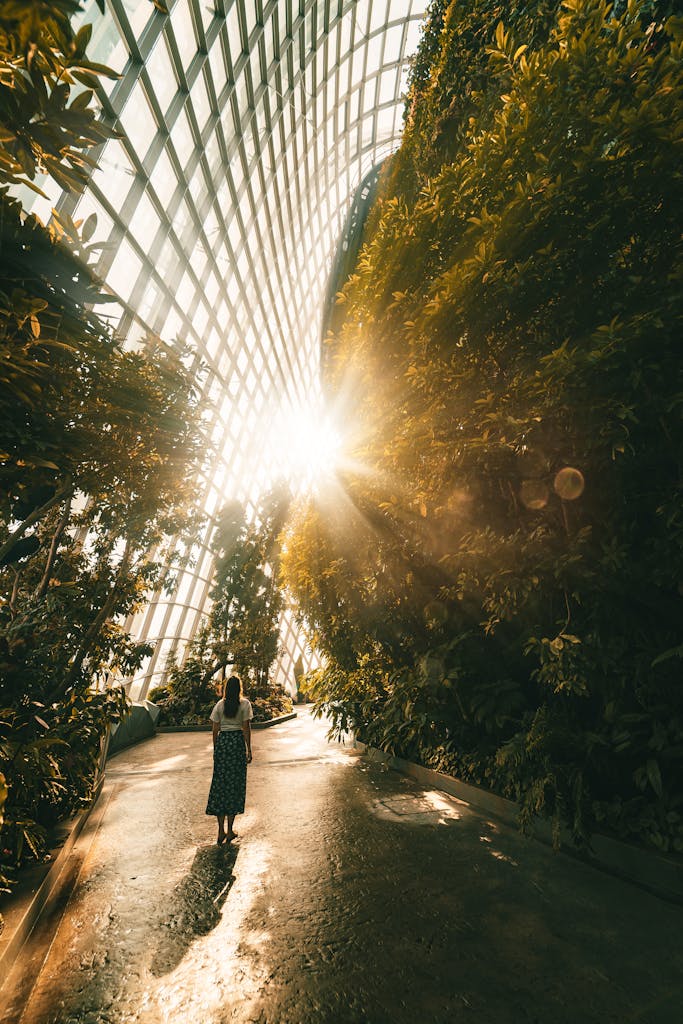

The two massive glass biomes represent engineering marvels in their own right. The “Flower Dome” replicates a cool-dry Mediterranean climate. In contrast, the “Cloud Forest” replicates a cool-moist tropical mountain climate, complete with a 35-meter indoor waterfall. The primary challenge engineers faced was how to create these enormous, column-free spaces and keep them cool in Singapore’s hot, tropical climate without consuming an unsustainable amount of energy.

Structural Construction: The “Grid-Shell”

The solution for the vast, column-free space was a “grid-shell” structure. This Construction technique uses a web of interlocking steel arches that support each other. As a result, this allowed the architects to create a lightweight, strong roof, which they clad in 3,332 high-performance glass panels. Furthermore, each glass panel is unique, optimized to let in maximum light while blocking maximum heat. This complex Building Construction required advanced 3D modeling and fabrication.

The Sustainability Cooling Loop: A Biomass Powerhouse

The cooling system is the project’s sustainable heart. Instead of using traditional, energy-intensive air conditioning, a hidden biomass energy center cools the gardens.

1. Biomass Boilers: The center burns horticultural waste (like tree trimmings) from across Singapore to generate electricity and heat.
2. Absorption Chillers: The system then uses this “waste heat” to power absorption chillers (a form of cooling that uses heat instead of electricity) to create chilled water.
3. Cooled Slabs: Finally, this chilled water circulates through pipes in the floor slabs of the conservatories. This cools the air at the lower, occupied level, rather than wasting energy trying to cool the entire massive volume of the dome. Excess hot air naturally rises and is vented out.

Water Management: A Self-Sufficient Cycle

The “Dragonfly” Lakes

The lakes within the gardens are not just ornamental; they are a crucial part of the water management system. The lakes function as a natural “bio-filter” for water collected from the garden’s catchment. First, the system collects and filters the water through a series of aquatic plants before it is stored. Then, this cleaned water is used for irrigating the entire park, including the Supertrees and Conservatories. This closed-loop system ensures that the gardens are largely self-sufficient in their water needs, a critical concern for a nation like Singapore.

Conclusion

Gardens by the Bay is a triumphant success. It proves that Architecture and engineering can create spectacular public spaces that are also deeply sustainable. By integrating energy generation, water harvesting, and waste management directly into the Design of its core attractions (the Supertrees and Conservatories), the project redefines the relationship between Cities and nature. Ultimately, it is more than a garden; it is a functioning, living blueprint for the future of urban Building Construction, and a subject of countless Architectural Discussions and Architectural Articles globally.

✦ ArchUp Editorial Insight

Gardens by the Bay is a monumental project that embodies Singapore’s Architectural Ambition to become a “City in a Garden,” adopting a Futuristic Style that seamlessly fuses nature and engineering. Its Structural Innovation is centered on the iconic “Supertrees”—vertical gardens that function as ecological engines for solar energy harvesting and rainwater collection, alongside the column-free glass conservatories employing a “grid-shell” structure. This design delivers a unique Spatial Function, creating cooled, temperate worlds within the hot, tropical environment. The Material Expression celebrates high-tech glass and steel, contrasted with the dense, living plant facade. However, the critique lies in the high Functional Cost Value; the reliance on technologically complex and energy-intensive systems, such as the subterranean biomass-powered absorption chillers, to perpetually cool the vast domes is an immensely expensive operational commitment. This level of technological dependence for artificial climate control questions the true long-term environmental efficiency of the project.
