Lakhta Center Engineering: Torsion Innovations, Floating Foundations

Architectural Vision and Lakhta Center Engineering Challenges

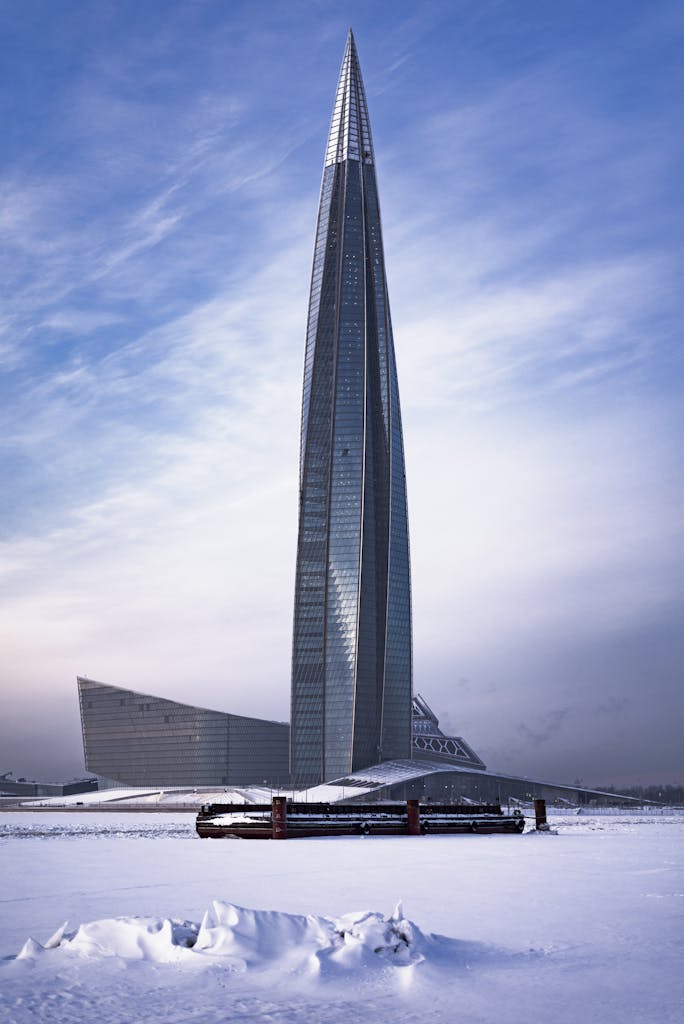

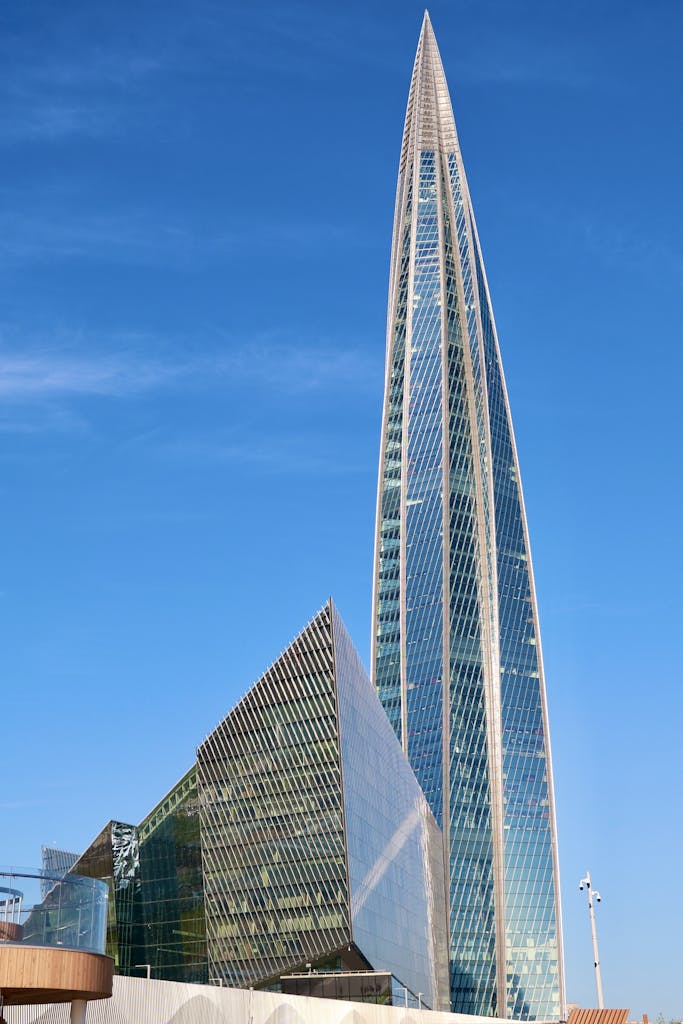

The Lakhta Center in St. Petersburg, the tallest building in Europe, represents a monumental challenge in structural Projects. The Russian firm “RMJM” designed the tower. The vision was to create a structure that combines a dynamic appearance with high energy efficiency, symbolizing Russia’s technological advancement. Firstly, the tower had to feature a striking spiral form, where each floor rotates by 0.82 degrees around the central axis, achieving a full 90-degree twist from base to pinnacle.

However, Lakhta Center Engineering faced exceptional obstacles. The site is located on the Gulf of Finland coast, meaning high winds and severe icing conditions. In addition, the area sits on relatively weak Soft Clay soil, which threatened foundation stability. Therefore, engineers had to develop an unprecedented structural system to ensure dynamic stability and resist immense lateral forces.

Deep Foundations: The Floating System and Massive Concrete Pour

The foundations presented the single largest challenge for Lakhta Center Engineering due to the soft soil characteristics. The solution involved building a massive “Floating Raft Foundation.”

1. Piles and Depths: First, engineers drove 264 colossal concrete piles, reaching depths of up to 82 meters into the stronger bedrock.
2. The Massive Raft: Then, a massive concrete raft (mat) was poured to tie all the piles together. This raft was 3.6 meters thick. Furthermore, the pouring process set a world record for the largest continuous concrete pour, utilizing 48,000 cubic meters of concrete over 49 hours.
3. Clay Stability: The floating foundation aims to distribute the immense building load (670,000 tonnes) over a wide area to minimize stress on the clay soil. Therefore, the raft acts as a giant “boat,” keeping the tower stable and limiting any uneven or differential settlement.

Structural System: Double Core and Torsional Perimeter

Lakhta Center Engineering adopted a structural system that prioritizes Torsional Rigidity to resist twisting and wind loads:

1. The Double Concrete Core: The structure consists of a rigid central concrete core. This core is the building’s heart, carrying vertical loads and providing the primary lateral resistance.
2. Twisted Perimeter Columns: A set of strong, inclined perimeter columns, which follow the spiral geometry, surrounds the core. These columns serve as perimeter support and link the core to the façade.
3. Radial Girders: Floor plates connect the central core and the twisted columns via massive radial steel girders. In this way, horizontal and wind loads are efficiently transferred from the façade to the rigid core. Consequently, this element combination provides the necessary stiffness for the rotating form.

Coastal Wind and Seismic Resistance

Severe wind and icing conditions on the Baltic coast were a vital factor in the structural Design. Engineers conducted more than ten extensive wind tunnel tests.

Firstly, the tower’s twisted shape helps to dissipate wind forces. This rotation prevents the formation of regular wind vortices (Vortex Shedding), which reduces lateral loads by up to 30% compared to a simple rectangular prism. In addition, the tower employs a dynamic Tuned Mass Damper system within the upper core to absorb vibrational energy and ensure occupant comfort.

Regarding seismic activity, although the region is not highly seismic, Lakhta Center Engineering implemented earthquake resistance standards that exceed local requirements, thanks to the robust concrete core and deep foundation technology.

Construction Materials and High-Strengthte Concrete Technology

The project relied on advanced concrete to handle the immense height and cold climate conditions.

Firstly, engineers developed a special concrete mix to provide a cohesive yet flowable concrete that could be pumped to a height of 460 meters, which was a world record at the time. In addition, St. Petersburg’s extremely cold temperatures required the use of special admixtures to accelerate the concrete’s curing process and protect it from freezing during Construction.

Smart Façades: Ice Resistance and Energy Efficiency

The glazed façade posed a significant challenge due to ice accumulation and low temperatures.

1. Smart Glazing: The structure used over 16,500 insulated glass panels. This glass features a special coating that reflects heat and provides extremely high thermal efficiency. Therefore, the glazing minimizes heat loss in the cold winter and heat gain in the summer.
2. Anti-Icing Technology: Engineers designed a specialized façade ventilation system aimed at preventing the build-up of snow and ice. Furthermore, a targeted heating system was integrated into certain glass sections where required.
3. Thermal Pit: The building uses an advanced heat recovery system. Hot air extracted from the offices is redirected downwards to heat the entrance area and subterranean storage spaces. This feature significantly reduces energy consumption and supports the building’s overall Sustainability.

Logistical Assembly of the Helical Structure

The assembly process for the external helical structure was precise and highly complex. Every single steel column had to be installed at a specific, precise angle different from the adjacent column to achieve the required rotation.

Firstly, 3D laser scanning techniques were used extensively to ensure the precise location of every connection point between girders and columns. Then, specialized self-climbing cranes, which ascend as the building grows, were deployed. Moreover, due to the high winds, the Construction team was often forced to work only on specific days with low wind speeds, demanding stringent logistical planning.

Conclusion

The Lakhta Center represents a unique engineering feat, not just for its record-breaking height in Europe, but for its superior handling of severe site challenges: weak clay soil, complex torsion, and harsh climatic conditions. In conclusion, Lakhta Center Engineering has established a new benchmark in Architecture for skyscrapers designed to withstand extreme wind loads and cold environments.
