The Shard Engineering Structural Innovations in Skyscrapers

Architectural Vision and Structural Challenges

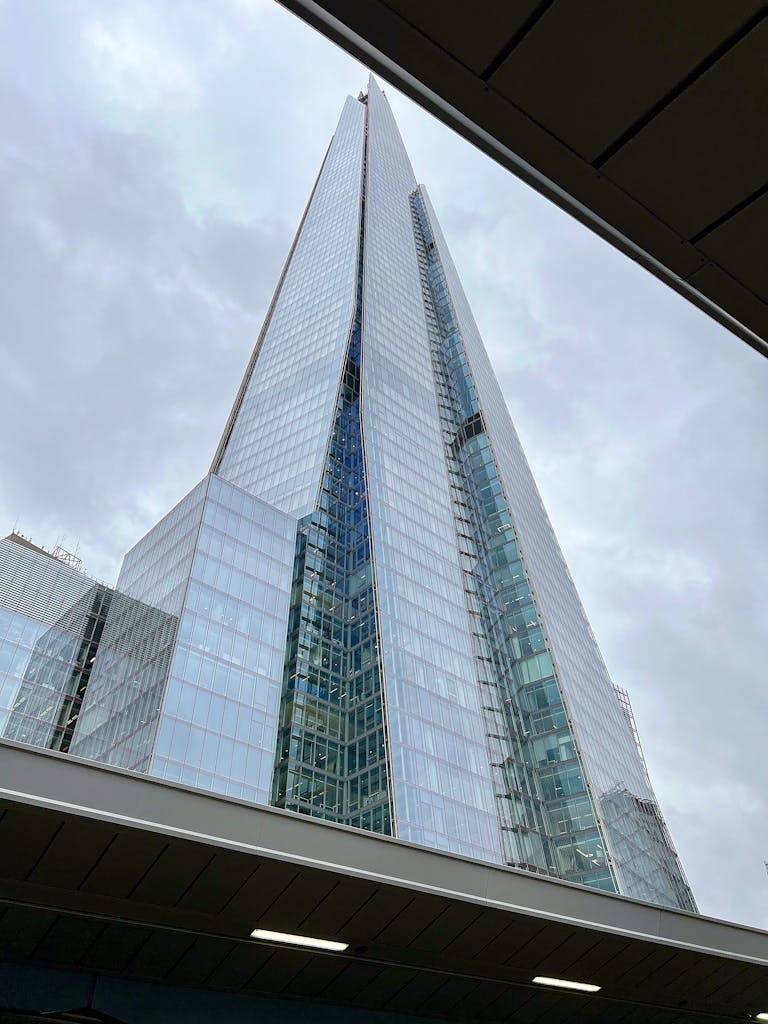

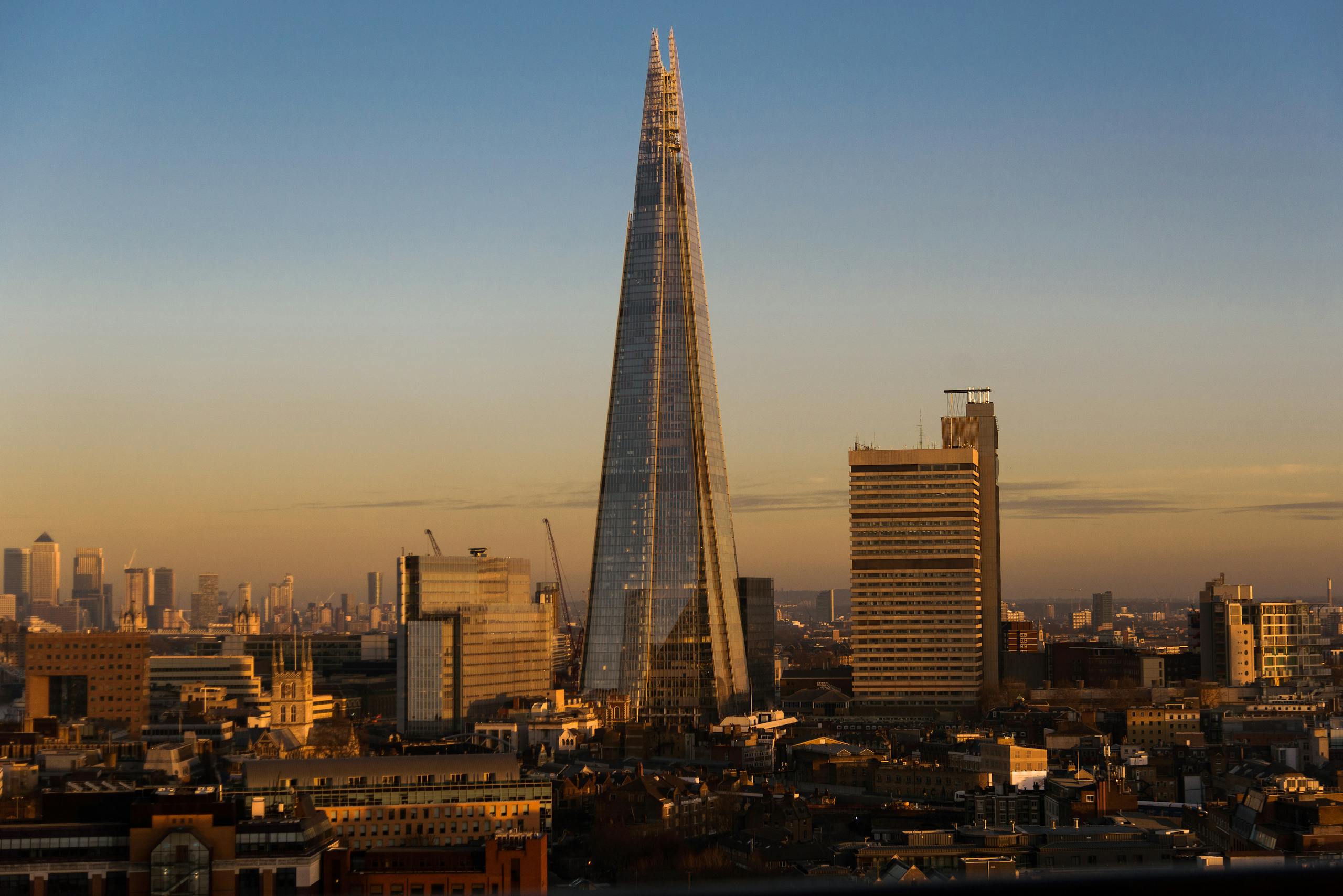

The Shard is the tallest building in Western Europe. Italian architect Renzo Piano designed the tower at the turn of the millennium. His architectural vision focused on creating a multi-use “Vertical City” that blends seamlessly with the historic London skyline. Firstly, the tower’s pointed, glazed shape needed to resemble the masts of historical ships or the spires of Gothic cathedrals, giving the building a distinct visual identity.

However, The Shard Engineering faced exceptional challenges. The site was severely restricted, located directly above the London Bridge transport hub. Furthermore, the soft London Clay soil required extremely deep and innovative foundations. The project’s ultimate goal was to build an elegant structure, 309.6 meters high (95 stories), utilizing slanted glass panels to expertly reflect the sky and weather changes. Therefore, the engineering team had to develop unconventional structural solutions to achieve this immense height.

Deep Foundations and the Revolutionary “Top-Down Construction ” Method

The foundations phase marked the most notable innovation in The Shard Engineering. Engineers utilized the “Top-Down Construction” method (a term opposite to conventional building). Normally, crews completely excavate the ground for foundations and basements before starting the superstructure.

But for this project, engineers drove deep concrete piles for the foundations. Then, they began building the central concrete core for the first 23 stories while simultaneously continuing the excavation underneath to create the basement levels. Consequently, this method saved approximately three months on the project’s critical schedule, representing a massive logistical achievement. Moreover, the engineers integrated new piles, reaching depths of up to 54 meters, with existing train station piles to ensure unparalleled stability in the clay soil, successfully overcoming complex site restrictions.

Hybrid Structural System Analysis: Concrete and Steel

The Shard Engineering adopted a highly efficient hybrid structural system, combining the strength of concrete with the flexibility of steel:

1. Central Concrete Core: This rigid inner core serves as the main lateral stability system, extending up to the 72nd floor. The core resists wind and seismic loads and houses the main lifts and stairwells.
2. Steel Frames: Engineers used lightweight composite steel frames in the lower office floors (up to the 40th floor). Steel allowed for faster erection and less overall weight.
3. Post-Tensioned Concrete: Engineers used post-tensioned reinforced concrete frames in the upper floors (hotel and residences). The reason is that this concrete type was better suited for smaller spans and reduced the thickness of the floor slabs.

In this way, this composite structure provided stiffness and strong resistance to lateral loads. Therefore, it required significant coordination between the concrete and steel Construction teams.

Managing Wind Forces and Vibration: Dynamic Stability Technology

Controlling building movement and vibration is a critical challenge for any supertall skyscraper, especially a slender tower like The Shard. To manage the movement caused by winds at 300 meters, the Design relied on the sheer mass of the central core (which aids in structural damping).

More importantly, The Shard Engineering employed a dynamic motion control system. They utilized dampers to absorb vibrational energy. Also, the sharply angled, pointed glass façade helps to dissipate wind forces, reducing direct pressure rather than resisting it head-on. Thus, this combination of structural stiffness, heavy core mass, and wind-dissipating façades ensured the safety and comfort of the building’s occupants on the upper floors.

Materials and Architectural Details

The Shard Engineering focused on Building Materials that served both energy efficiency and aesthetics.

1. Glazing: The project used 11,000 panels of ultra-clear white glass. These slanted glass panels (the “shards”) not only reduce heat gain but also constantly change the tower’s appearance by reflecting weather and light conditions.
2. Double-Skin Façade System: Engineers designed the building’s exterior as a “Double-Skin Façade.” In addition, this façade incorporates natural ventilation openings (fractures) that provide natural air exchange for the internal “Winter Gardens.” This significantly reduces the reliance on mechanical air conditioning, supporting the building’s overall Sustainability.
3. Combined Power Generation: Engineers equipped the tower with a Combined Heat and Power (CHP) plant, which runs on natural gas. This plant efficiently converts fuel into electricity, and the resulting waste heat is recovered to provide hot water for the tower. Therefore, these technologies effectively minimize the structure’s carbon emissions.

Logistical Challenges and Spire Assembly

The logistics of The Shard Engineering presented a major challenge due to the constricted and busy site location. All Building Materials had to be delivered via public transport routes (trains and buses) during off-peak hours, and then lifted vertically.

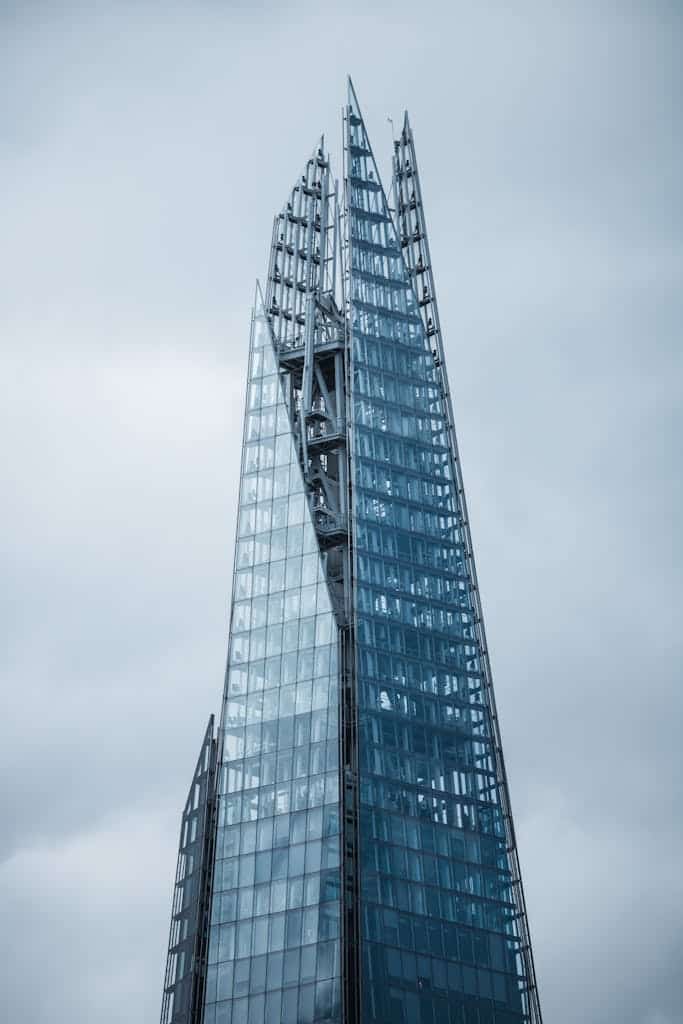

The most challenging part, the glass-and-steel Spire that gives the tower its shape, was a 60-meter-tall prefabricated steel structure. Engineers first assembled and tested this entire steel structure on an off-site test bed. This test allowed the team to identify and resolve any installation difficulties before working at the 300-meter height. Subsequently, the assembled structure was lifted to the top and installed using special cranes above the concrete core. The external glazing stops at the 72nd floor, but the top glass panels (which contain no floors) continue for another 18 meters, visually merging the structure with the sky.

Conclusion

The Shard represents an unprecedented achievement in modern civil Projects. Its success stems entirely from innovative engineering solutions, such as the top-down Construction method and the intelligent use of a hybrid structural system. In conclusion, The Shard Engineering has established a new benchmark for building in highly restricted locations, successfully blending high functionality and sustainability with visually stunning architectural innovation. This achievement demonstrates the superiority of contemporary engineering in reshaping the urban skyline.

✦ ArchUp Editorial Insight

The Shard is defined by its Super-Modern style and structural innovation, specifically its hybrid concrete-and-steel core system and its iconic double-skin, inclined glass façade, which dictates the building’s striking Material Expression. The core project intent was to create a “Vertical City” using unconventional Construction methods, most notably the ‘Top-Down’ technique, which yielded significant logistical success on the highly constrained London Bridge site. Despite the brilliance of the engineering solutions that guaranteed Dynamic Stability for such a slender Spatial Dynamics, the critical lens must question the Functional Value of the tapered, non-occupiable glass spire at the apex; this element consumes a vast volume without providing habitable floor space, raising questions about efficiency versus expense in this critical urban setting. Nevertheless, the project sets a new global benchmark for Architectural Ambition in dense locations, particularly through its integrated Sustainability features for ventilation and energy generation.
