BYA-I One Hydrogen-Electric Aircraft: Propulsion Integration Study
Development of Hydrogen Aircraft: Transitioning to the Detailed Design Phase
Some recent projects in the aviation sector have witnessed an important transition from the conceptual stage to a more precise engineering design phase, where the Preliminary Design Review (PDR) represents a pivotal milestone in assessing system readiness before entering testing and manufacturing stages. In this context, a jet aircraft based on hydrogen-electric propulsion emerges as an example of this shift toward low-emission aviation solutions.
From Concept to Engineering Maturity
Since the idea of the aircraft was first presented at an international air show in 2023, the design has undergone a series of iterative improvements aimed at enhancing the level of integration between its various systems. The Preliminary Design Review stage is considered an indicator of the project’s progression toward greater maturity, where actual feasibility is evaluated rather than relying solely on theoretical concepts.
Integration of Propulsion and Hydrogen Systems
This phase focuses on ensuring the integration of several key systems, including hydrogen storage, energy generation through fuel cells, thermal management systems, as well as structural and safety frameworks. This integration is regarded as a fundamental element in ensuring future regulatory and operational viability.
Evolution of the Electric Propulsion Concept
On the propulsion side, the design relies on a twin propfan configuration, representing an evolution compared to earlier designs that used ducted fan systems. This system is powered by multiple distributed hydrogen fuel cells, enabling the generation of total electrical energy used to operate the Electric Propulsion Concept system with higher efficiency.
This approach reflects a broader shift in aviation engineering toward electric propulsion systems powered by hydrogen as an energy source, with a focus on improving efficiency and reducing environmental impact, without delving into promotional or directly operational details.

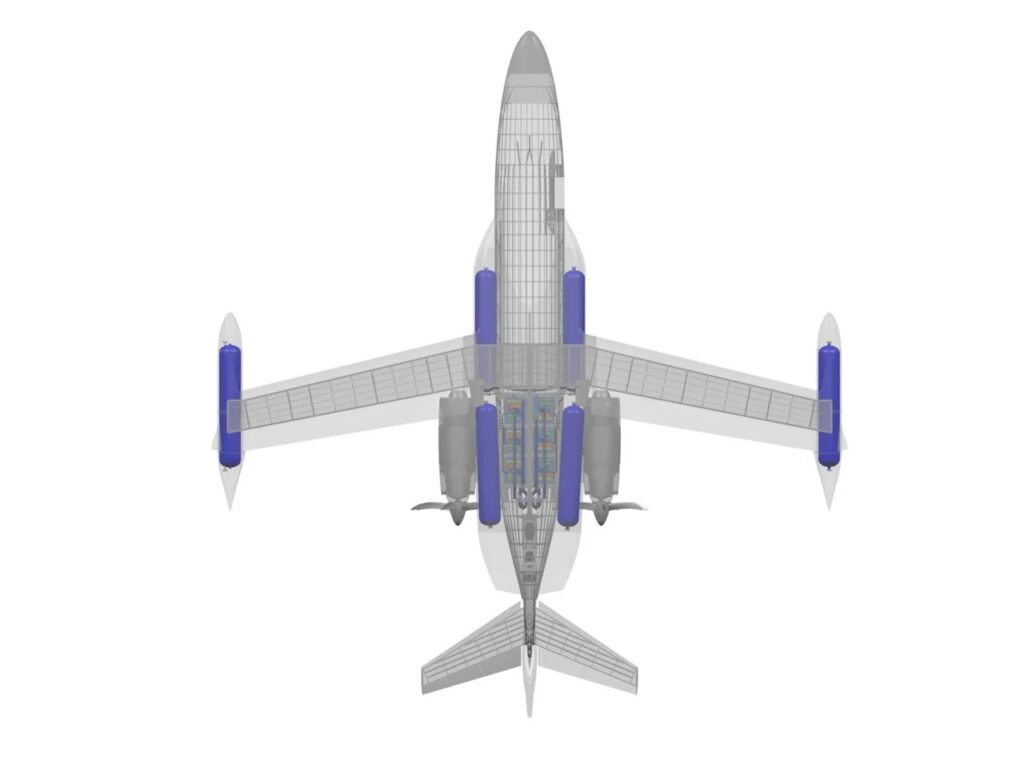

Hydrogen Storage and Refueling Operations
The storage system relies on compressed gaseous hydrogen at a high pressure of up to 700 bar, housed in external tanks mounted above the wing structure. This configuration enables a reduction in refueling time to approximately 30 minutes, aligning with business aviation requirements for rapid turnaround.
Emissions and Digital Control Systems
In terms of environmental impact during operation, the propulsion process produces only water vapor, reflecting the nature of fuel cell–based propulsion. The engine is controlled through an integrated FADEC digital system, which manages system performance across all flight phases to enhance stability and operational precision, with a view toward regulatory certification frameworks specific to aviation engines.
Performance and Operational Range
In terms of performance, the aircraft is designed to accommodate up to eight passengers, with a range of 800 nautical miles and a cruising speed of approximately 300 knots. This operational range positions the aircraft within coverage of a significant portion of business aviation routes within Europe. The maximum speed reaches around 414 miles per hour, with a service ceiling of 26,000 feet, reflecting a balance between operational efficiency and medium-range mission profiles.
Operational Flexibility and Takeoff Requirements
From an operational standpoint, the aircraft requires a relatively short takeoff distance not exceeding 725 meters, allowing it to operate from constrained urban airports such as London City Airport. Its structure is also designed to operate from non-traditional runways, including grass, snow-covered, or unpaved surfaces, thereby expanding the range of possible operating environments without departing from the aircraft’s overall technical framework.

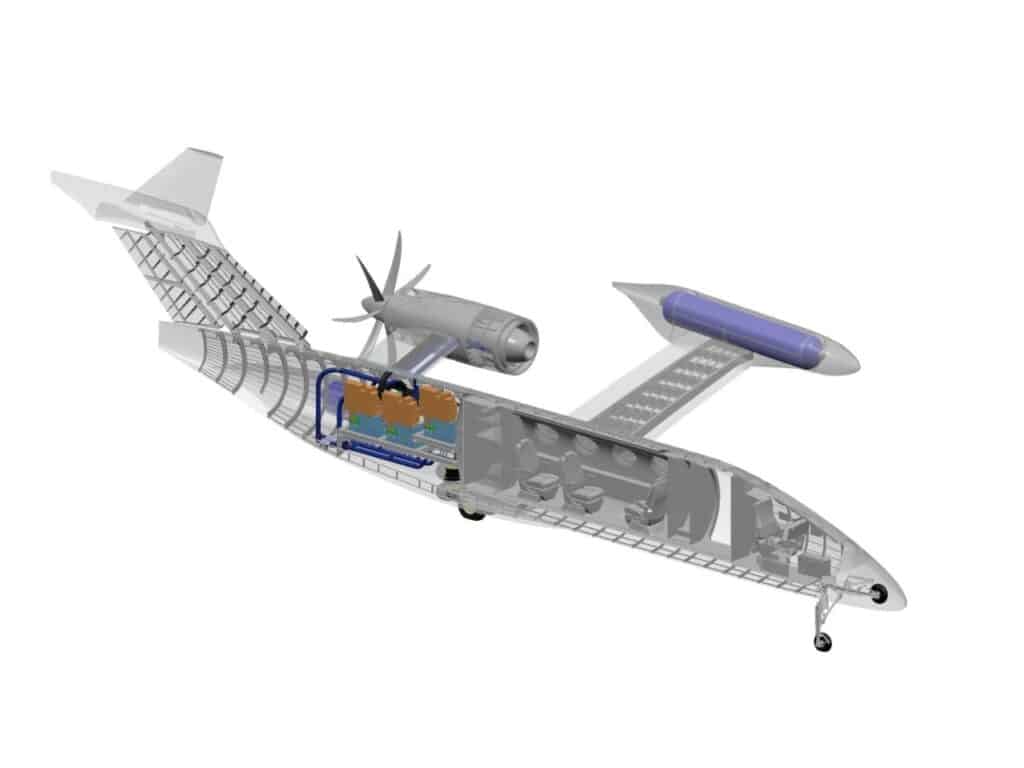

Cabin Design and Spatial Layout
The interior cabin design reflects an approach focused on maximizing usable space within light aircraft. The cabin measures 1.84 meters in width and 1.7 meters in height, a relatively spacious range within this aircraft category. The layout adopts a six-seat “club” configuration, designed to enhance passenger interaction within a constrained interior volume.
Natural Lighting and Window Design
In terms of lighting, oversized oval windows have been introduced, approximately 27% larger than the average in this sector. This expansion of window surfaces increases the flow of natural light into the cabin, enhancing the overall perception of spaciousness and visual comfort without significantly altering the aircraft’s external structure.
Reduced Operational Complexity and Maintenance Costs
From a mechanical engineering perspective, the design relies on a significant reduction in the number of moving parts, with the absence of high-temperature turbine systems. This decrease in mechanical complexity is theoretically reflected in reduced maintenance requirements, with estimates suggesting cost reductions of up to 60%. Overall operational costs are also expected to decrease by approximately 40% to 60% compared to conventional aircraft, due to the simplified propulsion architecture and lower maintenance demands.
Market Signals and Regulatory Pathway
On the market side, available data indicates purchase intent orders approaching $914 million, covering around 108 aircraft, in addition to pre-order waiting lists. However, these figures remain tied to the development stage and do not necessarily indicate entry into operational service.
At the regulatory level, certification is being pursued through the European Union Aviation Safety Agency (EASA), alongside the development of dedicated regulatory frameworks for hydrogen-electric aircraft, given that this represents a relatively new technological category. If the targeted 2030 timeline is achieved, the significance of this aircraft type will likely be framed as part of a broader transition in propulsion technologies rather than as an isolated case in itself.
✦ ArchUp Editorial Insight
We read the BYA-I One hydrogen-electric aircraft as the result of capital reallocation in the aviation sector toward compliance with emissions-reduction policies rather than an expression of independent design intent. The primary driver lies in startups adapting to European Union Aviation Safety Agency certification frameworks and ESG-linked investment expectations, where emissions constraints are transformed into fundable engineering programs.
Frictions include high-pressure hydrogen storage legislation, regulatory uncertainty surrounding distributed fuel-cell propulsion systems, and insurance risks associated with non-traditional propulsion architectures, all of which impose phased validation pathways at the Preliminary Design Review stage. The result is an aeronautical configuration reshaped as a spatial compromise between the operational range demands of business aviation and regulatory risk management, where redundancy systems and distributed propulsion replace the centralized turbine architecture.
In sum, innovation does not appear as a technological rupture but as an institutional rhythm governed by certification timelines, while pre-orders are converted into a mechanism for stabilizing engineering uncertainty within a predictable investment asset.
