Selecting the appropriate sizes for electrical wires and cables is a critical factor in designing and implementing efficient, safe, and reliable electrical systems within buildings. Accurate sizing ensures system performance, minimizes energy loss, and meets safety standards. This decision depends on engineering calculations and various architectural considerations that must be addressed during the design phase.
This article will cover:
- The basics of wire sizes.
- Electrical load calculations.
- The impact of architectural factors on cable selection.
- Use of international standard tables.
- Practical examples.
- Tips for architects regarding proper sizing.
- Risks associated with incorrect sizing.

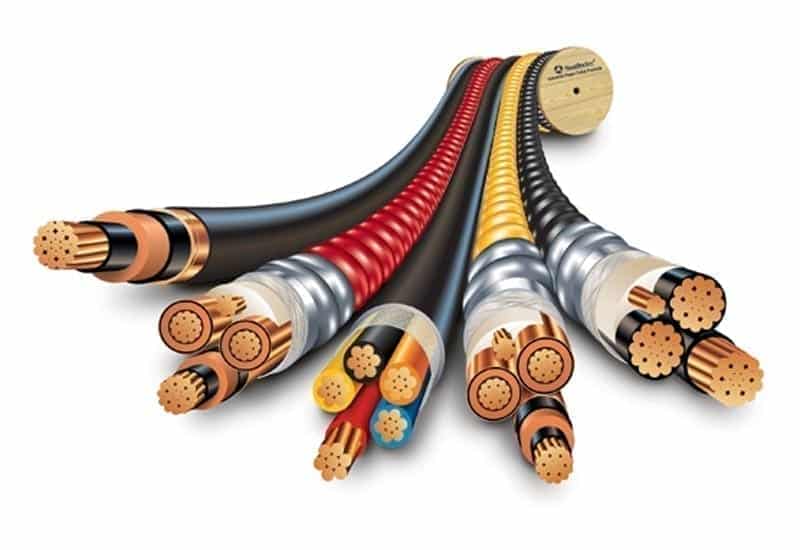

Basics of Wire Sizes
Electrical wires are measured using different systems:
- AWG (American Wire Gauge) : Commonly used in the United States.
- Cross-sectional area in square millimeters (mm²) : Widely adopted globally, especially in Europe and Arab countries.
| AWG | Cross-sectional Area (mm²) |
|---|---|
| 14 | 2.5 |
| 12 | 4 |
| 10 | 6 |
| 8 | 10 |
Electrical Load Calculation
To determine the correct wire size, it’s essential to calculate:
- Voltage (V): Typically 220 V or 380 V.
- Power (P) in watts (W).
- Current (I) in amperes (A), calculated using:I=VP
For example, a device with a power rating of 3000 W operating at 220 V:I=2203000≈13.6 A
Impact of Architectural Factors
Length Between Power Source and Load
Longer cable runs increase resistance, leading to:
- Voltage drop.
- Increased heat generation.
Larger wire sizes may be required to compensate for long distances.

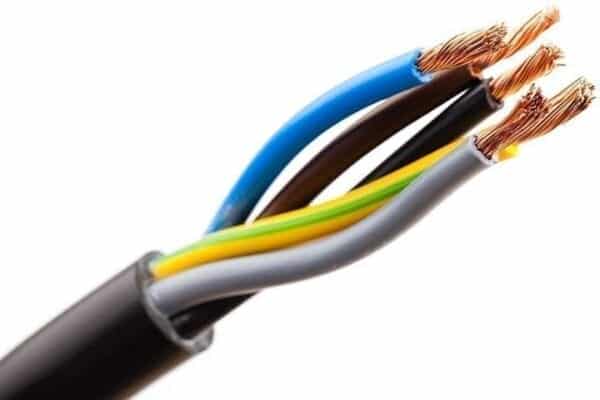

Insulation Type
- PVC: Lower cost but limited heat resistance.
- XLPE: Suitable for high-load applications and hot environments.
Environmental Conditions
- Temperature: Higher ambient temperatures reduce cable current-carrying capacity.
- Humidity: Requires moisture-resistant cables.
Use of Standard Tables
International standards such as:
- IEC 60364: International standard for electrical installations in buildings.
- NEC (National Electrical Code): Primarily used in North America.
These standards provide guidelines on:
- Maximum safe current per wire size.
- Adjustments based on temperature and installation conditions.
Practical Examples
Example 1: Lighting System in an Office
- Number of LED lamps: 20.
- Power per lamp: 20 W.
- Voltage: 220 V.
Total power:20×20=400 W
Required current:I=220400≈1.8 A
In this case, a 1.5 mm² wire with a 6 A circuit breaker (MCB) would be sufficient.
Example 2: Cable for Elevator Supply
- Motor power: 7.5 kW.
- Voltage: 380 V (three-phase).
Required current:I=(√3×380)7500≈11.4 A
A 6 mm² cable with appropriate protection is recommended.
Tips for Architects
- Plan dedicated spaces for electrical conduits in the early design stages.
- Account for future expansion when calculating loads.
- Use specialized software like Dialux to simulate lighting loads.
- Avoid routing cables through wet areas without adequate protection.
- Verify voltage drop over long distances before finalizing wire sizes.
Risk Analysis
Using undersized cables can lead to:
- Overheating of conductors.
- Increased risk of short circuits.
- Equipment damage due to voltage drop.
- Potential fire hazards.
Oversizing cables unnecessarily results in:
- Increased material costs.
- Difficulty in installation and routing.
Frequently Asked Questions (FAQ)
| Question | Answer |
|---|---|
| What is the difference between AWG and mm²? | AWG is an American gauge system, while mm² measures the actual cross-sectional area directly. |
| Can the same wire size be used for all types of loads? | No, different loads require different current ratings and voltage levels. |
| How does cable length affect size selection? | Longer lengths increase resistance and voltage drop, requiring larger sizes. |
| Why is insulation type important? | It affects the cable’s ability to withstand heat and moisture, impacting both safety and performance. |
Summary Table
| Element | Details |
|---|---|
| Wire measurement units | AWG, mm² |
| Basic calculation formula | I = P / V |
| Influencing factors | Length, insulation, temperature, humidity |
| Standards used | IEC 60364, NEC |
| Architectural tips | Early planning, software use, expansion allowance |
| Risks of improper sizing | Overheating, voltage drop, fire hazard |
ArchUp Opinion
Selecting the right wire and cable sizes is not merely a technical task—it is an integral part of architectural design. Often overlooked in early design phases, poor coordination between electrical engineers and architects can result in costly modifications later on. There should be direct collaboration from the initial planning stage. While modern software tools improve accuracy and reduce errors, they do not eliminate the need for fundamental knowledge of electrical principles. One notable criticism is that many projects fail to account for future expansions, leaving electrical systems unable to support increased loads over time.
