Kunshan Olympic Sports Centre: Architecture and Design Analysis

The Kunshan Olympic Sports Centre is a large-scale stadium project in China designed by the German practice GMP Architekten in collaboration with structural engineers and landscape designers. Completed to host football matches and athletic events, the stadium contains 45,000 seats and is set within an extensive parkland site. The project represents more than a sports venue. It is a study in how architecture can merge with urban context, ecological systems, and social needs. Unlike earlier monumental stadiums that were often detached from their environment, this project integrates pathways, bridges, and green areas to create a continuous connection with its surrounding landscape.

The stadium forms part of a wider development strategy for Kunshan, a city located near Shanghai. Positioned at the edge of a waterway, it makes deliberate use of natural barriers and landscape preservation. GMP Architekten applied their well-known approach of clarity and structural precision, designing a building that demonstrates technical performance as well as cultural sensitivity. The Kunshan Olympic Sports Centre also reflects on current architectural challenges: how to accommodate mass gatherings while reducing environmental impact, how to merge heavy engineering with a sense of openness, and how to allow public spaces to function beyond event days. These questions make the project significant both for practice and for academic architectural research.

Design and Spatial Strategies

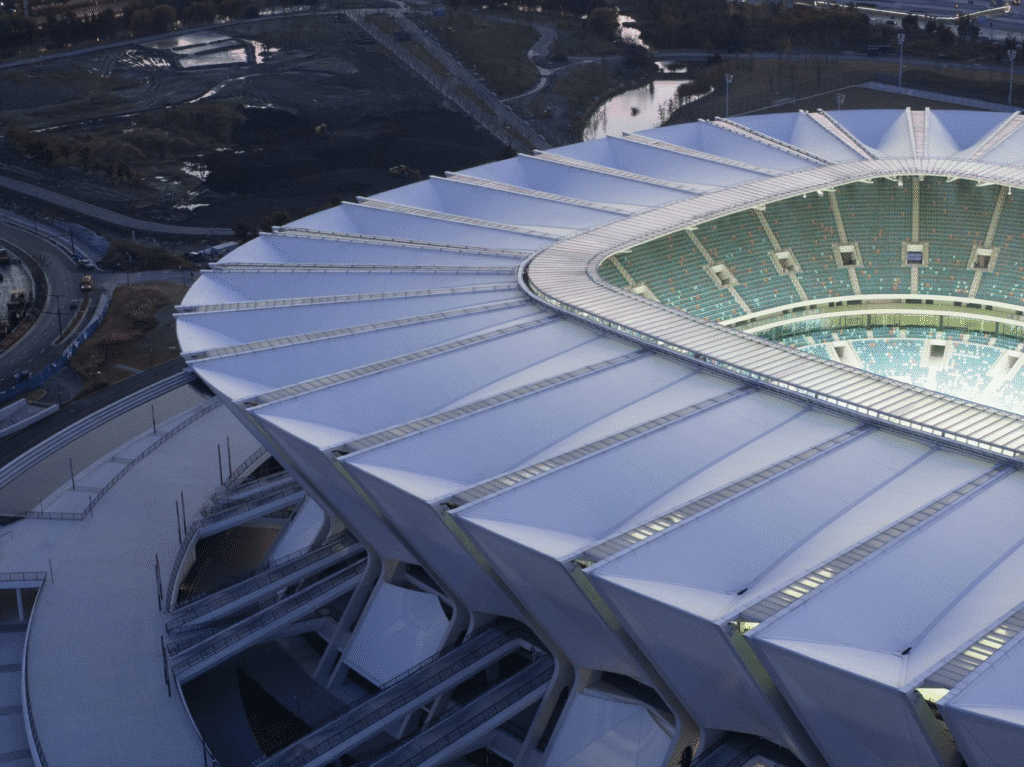

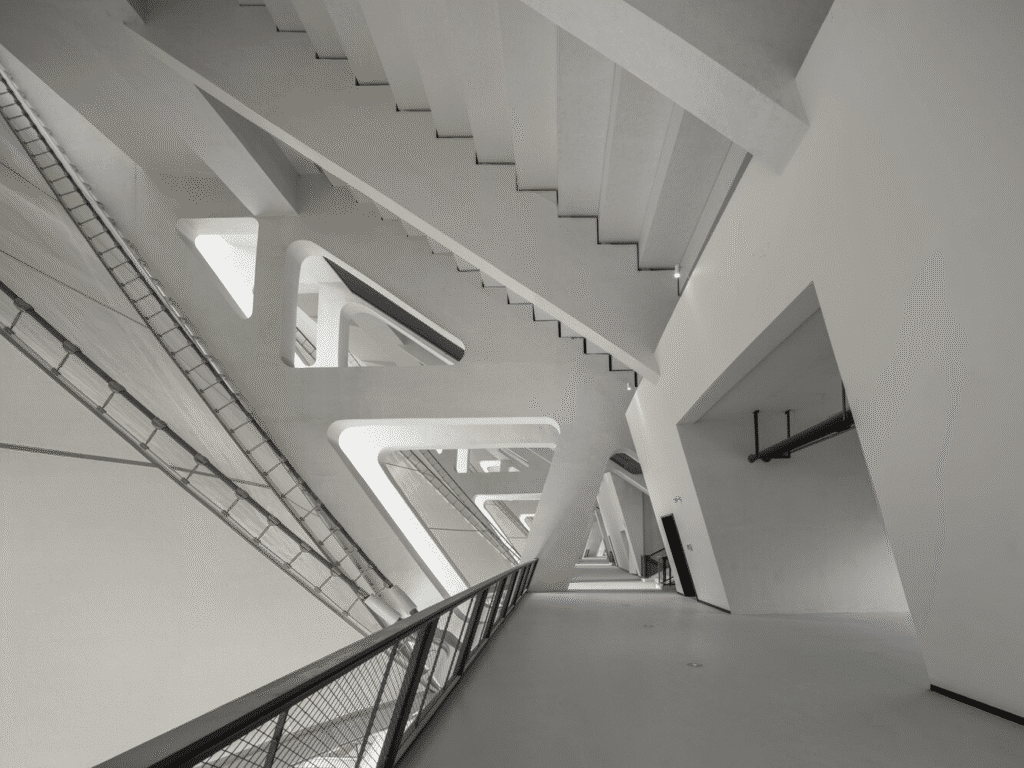

The design of the Kunshan Olympic Sports Centre is based on a ring-shaped structural system. A sequence of large concrete columns defines the main framework, between which staircases, ramps, and bridges are inserted. This arrangement improves circulation and offers multiple entry points to different seating levels. Instead of a compact and isolated form, the building opens outward, inviting public interaction from every side.

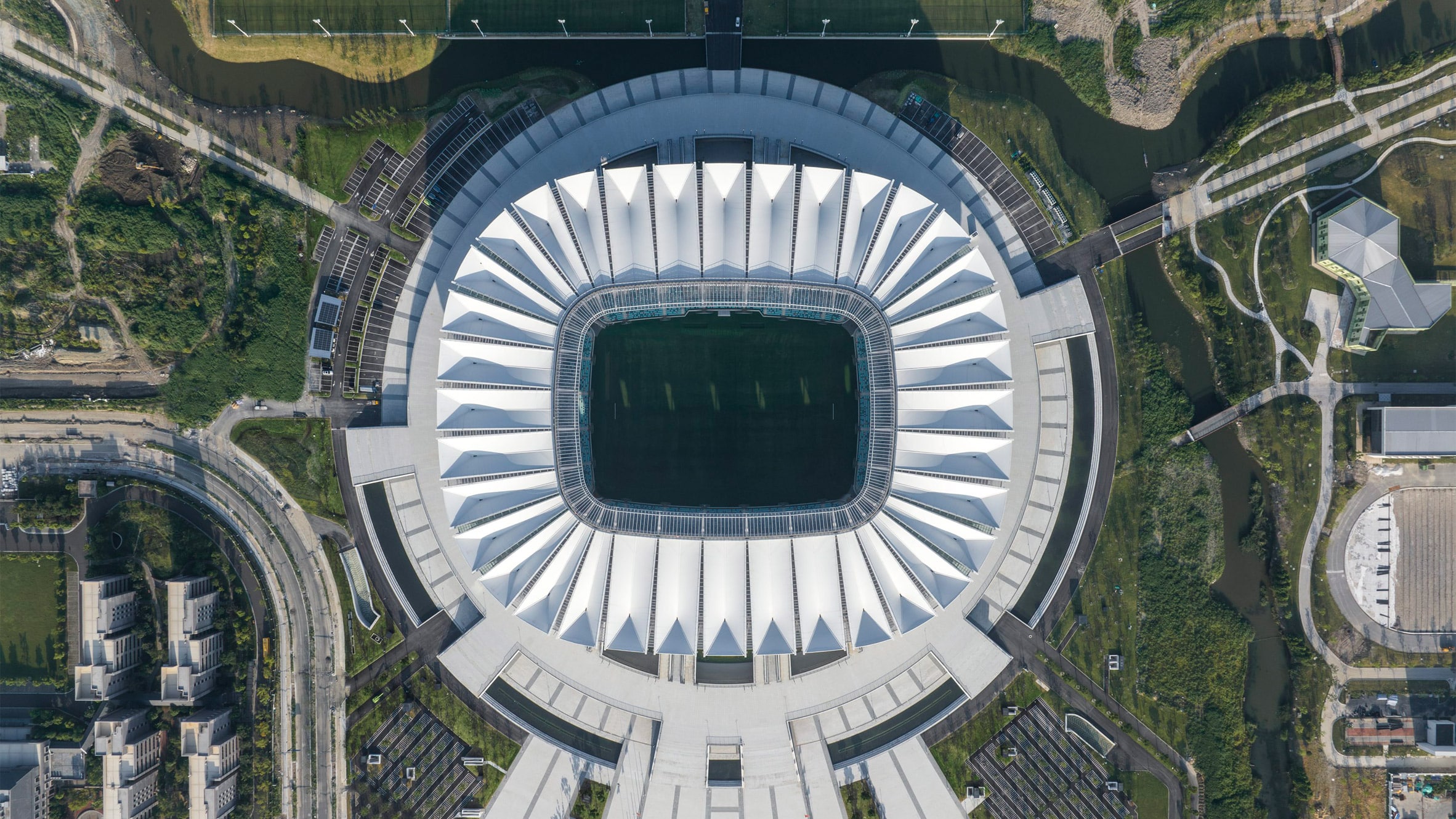

A major feature is the ring of elevated walkways. Forty-eight bridges link the external podium with the seating bowl, allowing visitors to access upper and lower tiers directly. This solution avoids congestion and creates clear directional flow. Around the stadium, an artificial water ring is integrated as both a landscape element and a security barrier. The design therefore combines functional efficiency with ecological sensitivity.

Materials and Construction

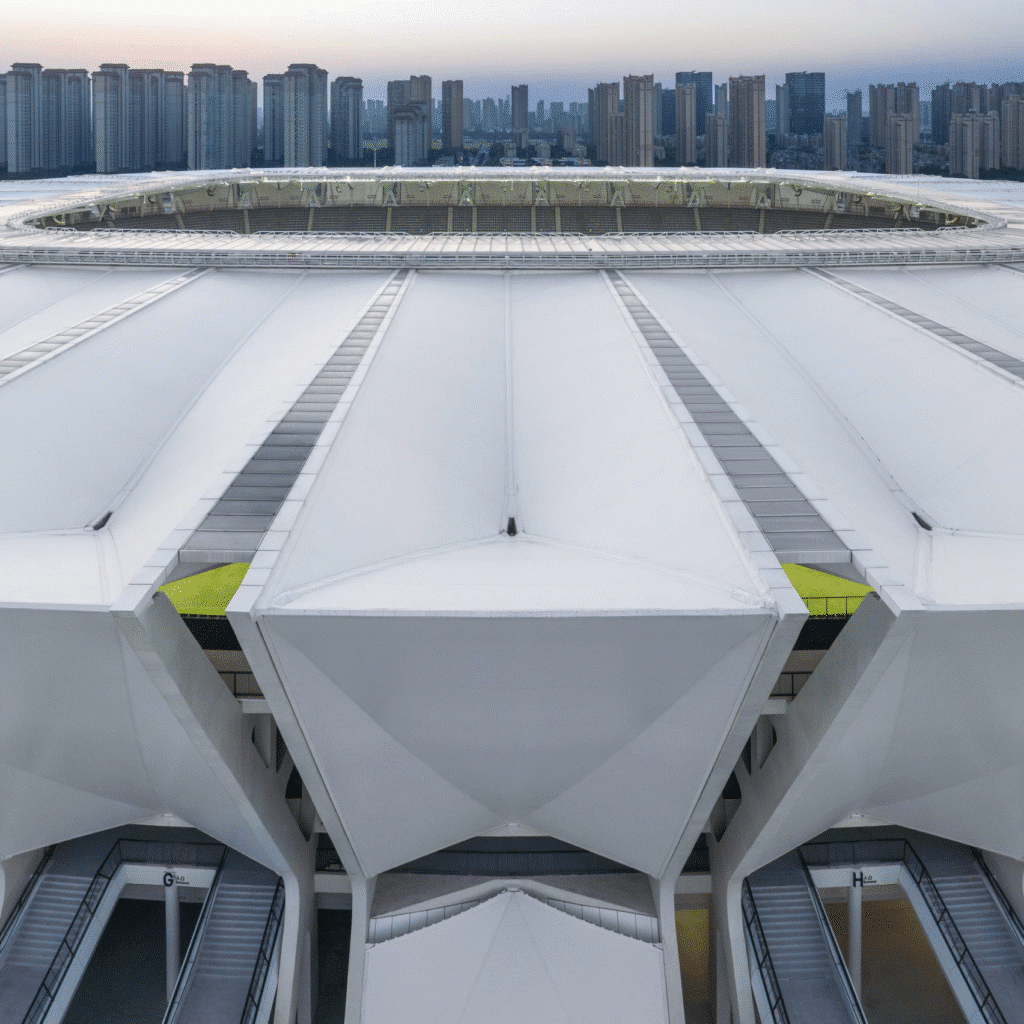

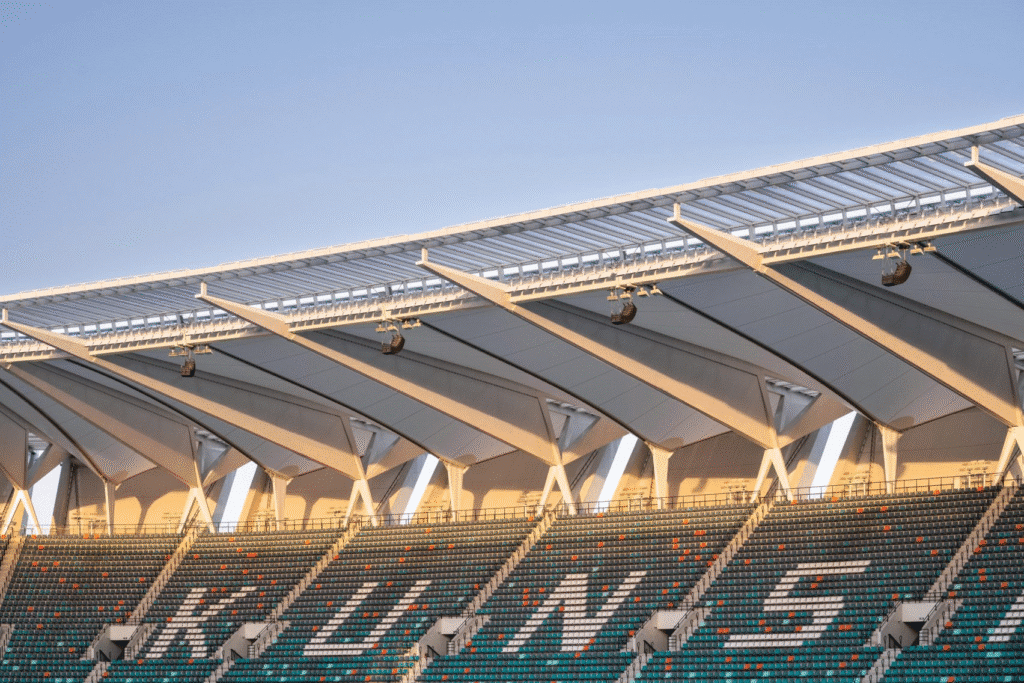

The structural system of the Kunshan Olympic Sports Centre combines reinforced concrete and lightweight steel. The concrete columns, arranged in pairs, form a fan-shaped rhythm around the building. Spanning between them, steel trusses support a translucent roof membrane that covers the seating areas. The use of fabric membrane reduces weight and creates angular roof profiles that give the stadium a recognizable identity. The outer façade is partially transparent, constructed with perforated metal to ensure ventilation while reducing bulk.

Component	Material	Purpose
Main structure	Reinforced concrete	Load-bearing support for seating bowl
Roof system	Lightweight steel trusses	Wide-span coverage without internal obstructions
Roof covering	Translucent fabric membrane	Weather protection and daylight diffusion
Façade	Perforated aluminum panels	Ventilation and visual permeability

Architectural Analysis

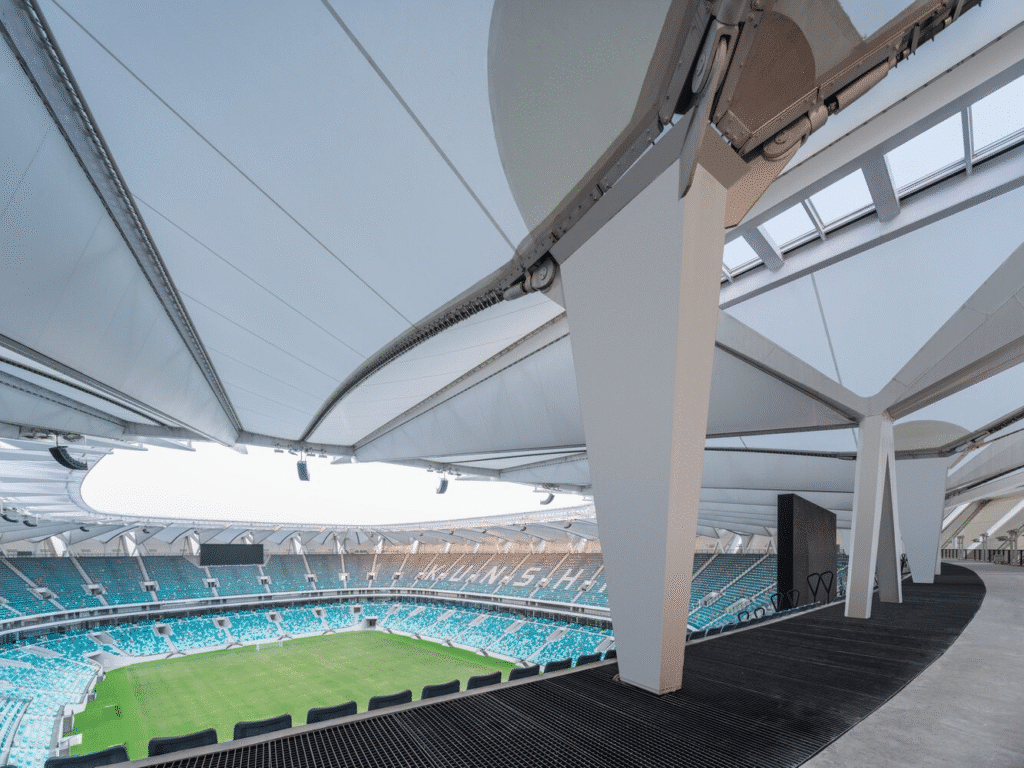

The design logic of the Kunshan Olympic Sports Centre reflects GMP Architekten’s principle of combining order, clarity, and functionality. The ring of double concrete columns creates a clear repetitive rhythm, symbolizing stability while providing structural strength. Steel trusses allow for wide spans, making sure spectators enjoy unobstructed views. The translucent roof membrane produces a soft daylight effect, reducing the heaviness usually associated with large stadiums.

Material use reflects hierarchy and logic: concrete forms the permanent base, steel provides flexibility for large spans, and fabric membrane introduces lightness. Contextually, the stadium responds to its parkland setting by preserving waterways and using landscape integration. Critically, the reliance on fabric membrane invites questions of durability in humid climates. Will maintenance demands affect the long-term sustainability of such large-scale bio-composites? This reflective question is constructive rather than negative, as it highlights the importance of material testing in architectural practice.

Project Importance

The Kunshan Olympic Sports Centre offers valuable lessons for architects and designers. First, it demonstrates how a large sports venue can avoid isolation by integrating directly with its landscape through bridges, podiums, and water features. Second, it shows that structural clarity can coexist with spatial openness, allowing efficient crowd circulation without creating heavy vertical cores. Third, it illustrates how material hierarchies can be applied logically, combining permanence, lightness, and permeability in one composition.

The project also contributes to broader architectural thinking. It questions how public infrastructure can adapt to multiple uses, serving both global sports events and local community functions. Its integration of landscape suggests a typology of stadiums that double as public parks, extending their relevance beyond limited event schedules. At a time when cities demand sustainable yet iconic architecture, the Kunshan Olympic Sports Centre provides a model of balance between technical ambition and ecological awareness.

✦ ArchUp Editorial Insight

The Kunshan Olympic Sports Centre is characterized by its circular geometry, translucent roof membrane, and rhythmic concrete frames. These elements combine to create an environment that feels both monumental and open. The integration of water and bridges reinforces the visual lightness of the overall form. A critical reflection arises regarding long-term material performance, particularly the membrane roof in the region’s humid conditions. Continuous evaluation and maintenance strategies will be essential. Despite this, the project illustrates how large venues can achieve functional efficiency while maintaining architectural quality, offering a useful precedent for future stadium designs.

Conclusion

The Kunshan Olympic Sports Centre is more than a football stadium. It is a statement on how architecture can mediate between mass gatherings, ecological systems, and public life. Its structural rhythm, spatial openness, and integration with landscape mark a departure from the isolated mega-structures of the past. Through its material hierarchy of concrete, steel, and membrane, it combines durability with lightness and transparency.

For visitors, the stadium provides clear circulation, visual openness, and a unique experience of being connected to both sport and landscape. For architects, it offers a case study in balancing efficiency with symbolism, and in testing new structural solutions under demanding climatic conditions. At a global level, it reflects the ongoing evolution of stadium typology, where the challenge is not only to host events but to contribute to city life. By integrating construction logic with ecological and social awareness, the Kunshan Olympic Sports Centre positions itself as a relevant example for future-oriented practice.
