The Broad Analytical Insights into its Architecture, Structure and Environmental Design

Introduction

The Broad, located in downtown Los Angeles, is a landmark in contemporary Architecture, serving as a central hub for modern art exhibitions and public engagement. Designed by Diller Scofidio + Renfro in collaboration with Gensler, the museum exemplifies a sophisticated integration of urban context, cultural programming, and technological innovation. The building embodies a duality of openness and containment, with a structural vault housing the collection and an exterior “veil” providing natural light modulation and distinctive visual identity. This study explores The Broad’s architectural vision, structural systems, material selection, and spatial organization, highlighting technical innovations and design strategies that respond to both functional and environmental requirements.

Design Background and Site Constraints

The Broad occupies a dense urban block in downtown Los Angeles, surrounded by high-rise commercial and residential Buildings. The constrained footprint and adjacency to other structures necessitated a design that maximized exhibition space while maintaining public accessibility. The architects approached these constraints by elevating the main gallery areas above street level, creating a porous ground plane that promotes pedestrian flow and visual connectivity with surrounding Cities. Considerations included zoning regulations, traffic patterns, and public safety, all of which informed both the structural Construction solutions and material choices. The site’s limitations directly shaped the architectural and functional form, resulting in a building that responds to urban density while preserving openness and circulation.

Architectural Vision and Visual Identity

The Broad’s signature “veil-and-vault” concept creates a strong visual identity that distinguishes it in the Los Angeles skyline. The outer honeycomb Design envelope acts as both a shading device and a medium for diffused daylight, balancing visual openness with controlled illumination for sensitive art installations. The façade’s rhythm of openings establishes a dynamic pattern of light and shadow, contributing to an architectural language that is simultaneously modern and contextually aware. This interplay of transparency and solidity communicates a sense of approachability and engagement, reinforcing the museum’s role as a civic and cultural landmark.

Structural Composition and Forming Processes

The structural system integrates a massive concrete vault containing the art collection with a lightweight steel exoskeleton supporting the exterior Design “veil”. The vault provides long-span, column-free spaces, enabling flexible exhibition arrangements. The steel exoskeleton carries wind and gravity loads while supporting the fritted glass panels that create filtered daylight conditions. Prefabrication of the exoskeleton components facilitated precise assembly and minimized construction time, while advanced modeling ensured alignment of the steel panels with the underlying concrete structure. The combination of concrete and steel illustrates a sophisticated understanding of material synergy, load transfer, and architectural expression.

Structural System, Materials, and Functional Zones

The following table summarizes the key structural components, materials, and functional zones, providing an overview of how form, performance, and Sustainability considerations converge in the building:

This table illustrates how Building Materials, structural efficiency, and spatial planning coalesce to provide both aesthetic and functional solutions.

Interaction with Surroundings and Circulation Flow

The Broad fosters an active dialogue with its urban environment. Pedestrian access is facilitated through a transparent ground-level lobby, visually connected to the public plazas and terraces. Vertical circulation is designed to be intuitive and inclusive, with ramps and elevators ensuring accessibility for all visitors. The elevated gallery spaces allow daylight penetration to the lower level, enhancing spatial perception and encouraging exploration. Landscaping and outdoor seating integrate seamlessly with the city fabric, supporting both social interaction and cultural engagement. The relationship between Projects and the urban context reinforces the museum’s civic presence, enhancing its role as a cultural connector within the Cities framework.

Sustainability and Indoor Environment

Sustainable design strategies are integral to The Broad. The Sustainability measures include passive daylighting, optimized natural ventilation, high-performance glazing, and energy-efficient lighting systems. The concrete vault functions as a thermal mass, moderating indoor temperatures, while the fritted glass panels control solar gain. Monitoring systems allow adaptive control of lighting and HVAC, enhancing comfort while reducing energy consumption. The integration of Construction techniques with sustainable practices reflects a comprehensive environmental strategy, balancing visitor comfort, operational efficiency, and environmental responsibility.

Lighting Variations and Functional Space Distribution

Lighting is carefully orchestrated to support both art display and visitor experience. The “veil” provides diffuse natural light, while adjustable artificial lighting ensures uniform illumination across galleries. The separation of circulation zones from primary exhibition areas allows visitors to navigate without disturbing the art experience. Spaces are multifunctional, capable of hosting educational programs, temporary exhibitions, and events, illustrating the Design adaptability essential to contemporary cultural Buildings. Strategic lighting design also contributes to sustainability by minimizing energy-intensive artificial lighting when natural daylight is sufficient.

Surface Composition and Exterior Façade

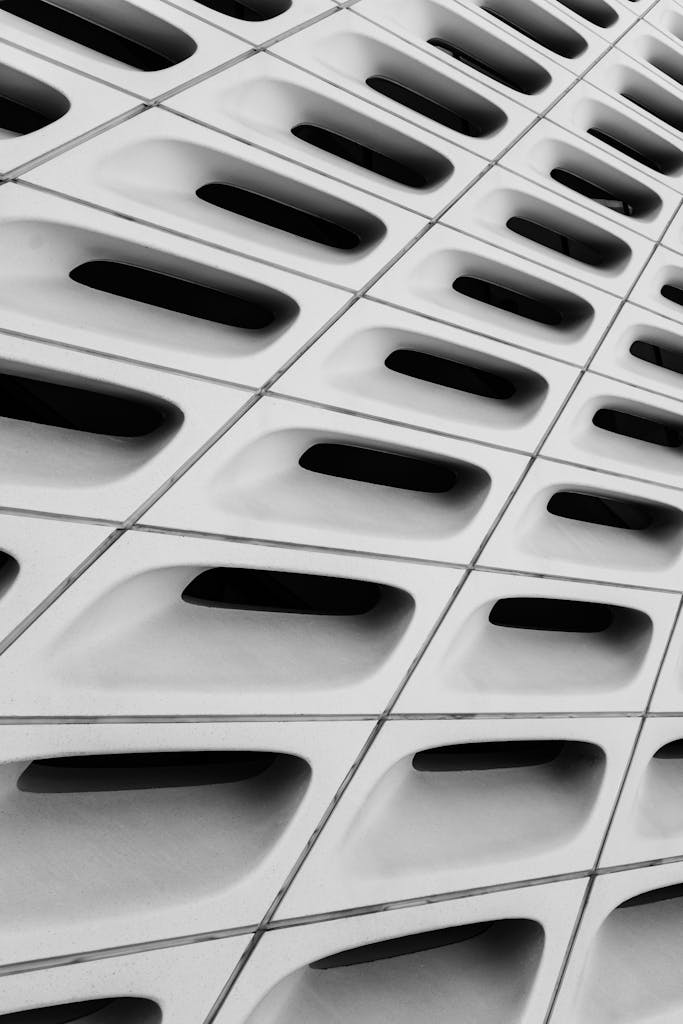

The Broad’s exterior façade is both a functional and expressive component of the building. The honeycomb pattern of the Design veil creates controlled daylighting, thermal shading, and aesthetic rhythm. The modularity of the steel and glass panels facilitates maintenance, replacement, and future adaptability. Reflective surfaces engage visually with the surrounding cityscape, while fritted glass reduces glare and solar heat gain. The façade exemplifies how architectural form, Building Materials, and environmental performance can be integrated harmoniously.

Acoustic and Lighting Performance in Public Spaces

Public areas employ acoustic treatment strategies to minimize interference from urban noise, ensuring a focused art-viewing experience. Sound-absorbing panels, strategic ceiling design, and wall treatments maintain clarity without compromising spatial openness. Integrated lighting balances natural and artificial sources, contributing to visual comfort and energy efficiency. The coordination of Construction systems with Buildings operational requirements exemplifies meticulous planning and technical sophistication.

Interaction with Artwork and Spatial Independence

Galleries are designed as flexible, column-free spaces, allowing curators to rearrange exhibitions and educational setups. Independent circulation paths prevent interference between simultaneous exhibitions, ensuring spatial autonomy. Adaptable interiors enable the museum to host various art forms, from large-scale installations to delicate works, reflecting advanced Design and functional planning.

Technical Challenges and Engineering Innovations

Challenges included integrating a long-span concrete vault with a lightweight exoskeleton, precise alignment of fritted glass panels, and accommodating large, movable exhibition walls. Solutions involved modular prefabrication, 3D modeling, and BIM coordination, which reduced construction errors and improved accuracy. These innovations demonstrate the intersection of architectural vision and advanced Construction methodology.

Adaptability, Maintenance, and Lifecycle Management

The Broad was designed for long-term adaptability, with modular façades, accessible mechanical systems, and future-proofed circulation paths. Material durability, maintenance strategies, and monitoring systems ensure that the building remains functional and visually coherent over decades. Lifecycle management strategies include structural health monitoring, energy performance tracking, and climate control optimization, ensuring sustainable operation while preserving the integrity of the museum’s collection.

Conclusion

The Broad represents a synthesis of architectural innovation, technical sophistication, and environmental responsiveness. Through the integration of Architecture, Design, Construction, and Sustainability, the museum achieves a balance of functional flexibility, public accessibility, and aesthetic distinction. Its innovative structural systems, interactive façades, and carefully orchestrated spatial organization set a benchmark for contemporary cultural Buildings worldwide.

✦ ArchUp Editorial Insight

The Broad museum serves as a prime example of the Contemporary Style, embodying the duality of protection and transparency through its “Veil-and-Vault” concept. The core Structural Innovation lies in the use of a honeycomb-like exoskeleton made of steel and fritted glass panels, known as The Veil. This enclosure does not just define the visual identity but functions as a crucial environmental strategy, regulating diffused natural light and mitigating Solar Gain. However, architectural criticism might point out that the stark contrast between the naturally lit gallery spaces and the dense, concrete storage volume (The Vault) creates a functional dichotomy that potentially limits the integrated Spatial Dynamics for visitors. Nevertheless, the project successfully achieved the highest Sustainability standards for complex museums, establishing an architectural trend that merges overt Material Expression with precise environmental control.

A deeper Architectural Discussion within modern Architecture explores how innovative Design and advanced Construction methods reshape global Projects in the pursuit of sustainability and human-centered environments.
