The Gherkin: Diagrid Shell Efficiency in Achieving Sustainability and Passive Ventilation

Introduction

The Gherkin, formally 30 St Mary Axe, stands as an excellent example of advanced skyscraper design by Foster + Partners. Fundamentally, its design concept employs a unique spindle shape built upon the external Diagrid as the core structural element. Importantly, this design choice is not merely aesthetic; it offers a smart engineering solution aimed at lessening wind pressure variance around the tower. This approach successfully reduces the surface area exposed to lateral wind loads, minimizing the need for massive corner bracing. Consequently, the design allows for great interior planning flexibility and maximizes natural daylight. The Gherkin’s successful blend of form and structure makes its study crucial in Architectural Research.

Historical Context and Urban Planning

The Gherkin is situated in the heart of London’s financial district on a site damaged by the 1992 IRA bombing. This history mandated an urban planning strategy that subtly integrates the tower into the city’s historic fabric. Designers chose the tapered, cylindrical form to minimize shadow impact on adjacent streets and buildings. Thus, the structure preserves important historic viewing corridors across the Cities. Furthermore, the planning strategy included creating a large, open public plaza at the tower’s base. This space enhances pedestrian movement and ensures direct access without harsh perimeter walls. This method sets a strong model for integrating major Buildings into dense, historic urban settings.

Functional Core and Architectural Programs

The building places its functional core centrally, housing all elevators, services, and stairwells. This arrangement fully frees the building’s perimeter. As a result, the architects created column-free, open-plan, naturally lit office spaces. The unique architectural program features distinctive twisted voids that cut through the shell every six stories; these are called “light wells” or “air chimneys.” They act as vertical common areas, actively moving air and light between floors. Also, these communal spaces offer employees direct access to fresh air and light, promoting social interaction. This feature greatly improves the quality of the internal working environment, a key component in modern Design.

Form and Shell Geometry

The Gherkin’s double-curved, spindle shape comes from applying advanced shell geometry. This geometry provides exceptional resistance to wind forces, similar to the strength of an eggshell. Its shape depends on circular sections that change diameter as the structure rises, reaching maximum width at about two-thirds of the total height. The structural realization of this form uses the external Diagrid system. This system allows the inclined members to work as both columns and beams efficiently. Overall, this innovative geometry requires about 20% less steel compared to traditional high-rises. This design choice highlights a radical advancement in high-rise Architecture focused on structural efficiency.

Structure and Building Systems

The structural system represents the most compelling aspect of the Gherkin’s performance. The main system consists of the external steel Diagrid, which supports the entire structure. This network efficiently transfers all vertical and lateral (wind) loads directly to the foundations. This technique eliminated the need for perimeter columns, providing excellent flexibility for office layouts. Complementary systems include a central concrete core. This core manages all service elements and vertical circulation. Additionally, horizontal steel rings connect to the Diagrid at each floor to support the floor plates, while the diagonal members brace the structure against both torsion and wind forces.

Walls, Façades, and Building Materials

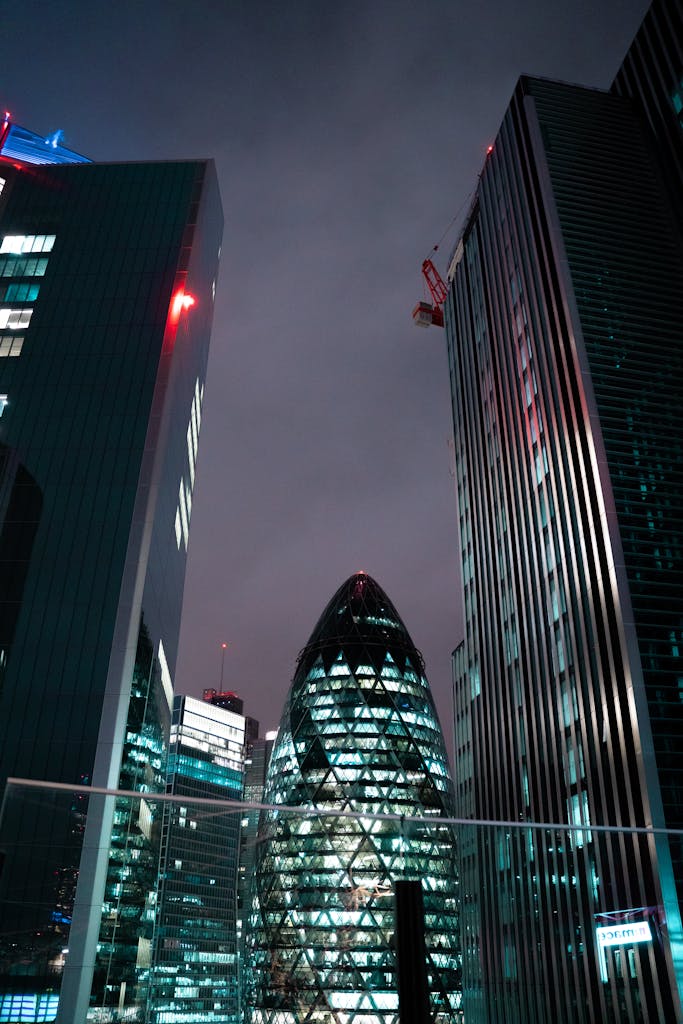

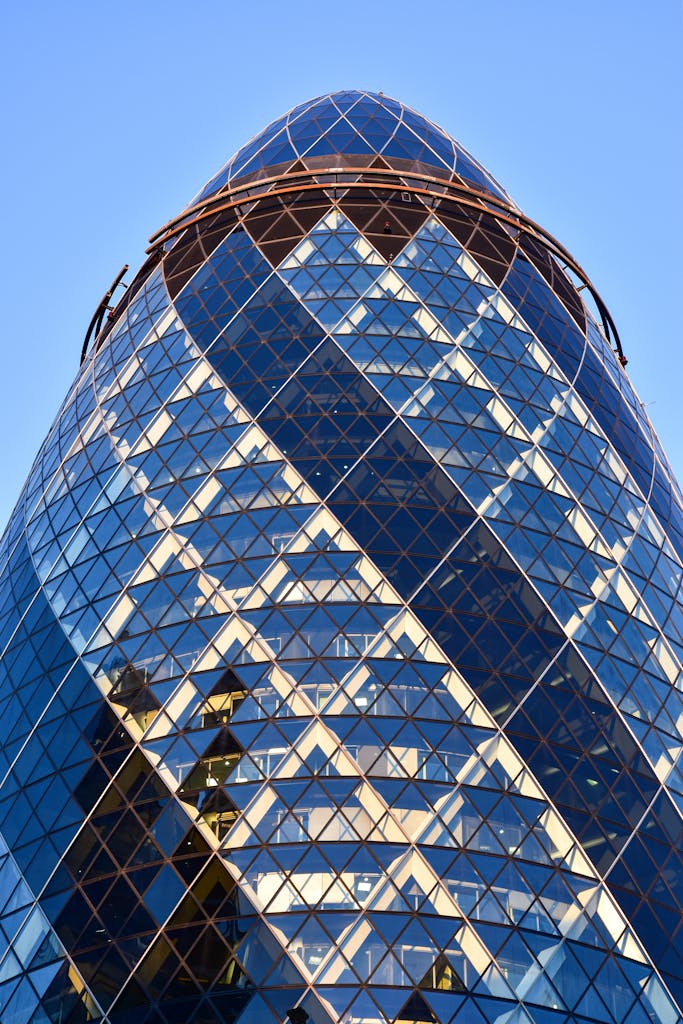

The exterior façade uses a double-glazing system to fill the structural triangles of the Diagrid. The designers used approximately 7,442 flat glass panels. Notably, only one type of glass panel required curvature; this decision minimized Construction complexity and cost. Essential building materials include high-strength structural steel for the Diagrid and reinforced concrete for the central core. Inside, white marble and recessed lighting define the internal communal areas. Glass dominates the exterior, reflecting the surroundings and reducing the building’s visual size. This focus on material performance is key, as detailed in Material Datasheets.

Lighting, Ventilation, and Environmental Interaction

The Gherkin heavily relies on passive natural ventilation for high environmental efficiency. Operable façade panels within the light wells allow fresh air to enter and circulate inside. The design guides this air through six vertical air chimneys that spiral up the building. This system significantly reduces the need for mechanical air conditioning for most of the year, lowering energy consumption. Furthermore, the tapered shape maximizes natural daylight reaching deep into the office space. Consequently, this reduces the need for artificial lighting and greatly enhances the quality of the working environment.

Sustainability and Economy in Visual and Thermal Performance

Sustainability primarily drove the unique shape and façade design. The building’s geometry helps lessen heat exchange by minimizing its surface area compared to square shapes. Visual performance economy is achieved by maximizing daylight, which reduces the need for constant artificial lighting. Moreover, the Diagrid system provides material economy. It used about 20% less steel than a traditional skyscraper of equivalent size. These principles powerfully advance the concept of Sustainability in modern urban Cities.

Transportation and Connection to the Urban Context

The Gherkin was designed to integrate closely with the surrounding transportation network. Its location offers excellent access to public transport (London Underground and rail). Therefore, the design encourages employees to use sustainable travel options instead of private cars. A notable feature is the large, open public plaza at the base. This area creates a welcoming space and ensures smooth foot traffic flow. Additionally, the planning included integrating retail and public facilities at ground level, strengthening the social link between the building and the urban environment.

Design and Structural Statistics for The Gherkin

Safety and Technical Reliance in Design

The Gherkin employs advanced safety protocols, especially due to its history as a sensitive site. The design depends on the high structural redundancy of the Diagrid system. If one part of the network fails, adjacent parts can effectively redistribute the load, ensuring excellent safety. Furthermore, technology enhances safety through sophisticated fire suppression and warning systems. The core also contains dedicated rescue elevators to facilitate quick emergency evacuations. Technical reliance included extensive 3D modeling and complex computational analysis. These tools ensured the Architectural Projects remained stable against extreme wind loads, the most critical lateral force at this height.

Technological Considerations and Their Impact on Architectural Performance

Technology greatly influenced the building’s architectural performance throughout its life. Advanced computer programs modeled and designed every Diagrid element precisely. This careful planning simplified fabrication and on-site assembly, minimizing errors. Moreover, the façade’s glazing is part of an active environmental control system that responds to changing climatic conditions. This high level of technical integration produced a “smart” building capable of efficiently managing its energy use, confirming the importance of embedding digital engineering into the Design process.

Artistic Direction and Design Challenges

The primary artistic direction aimed to create a sustainable, iconic landmark that draws inspiration from natural forms. The biggest design challenge involved the on-site assembly of the Diagrid structure. Although the system is efficient, it demands extreme precision when joining the angled steel triangles. Designers also faced the challenge of smoothly integrating the spiraling air shafts (essential environmental components) into the smooth exterior glass façade. They had to achieve this without compromising the façade’s thermal integrity.

Functional and Structural Evaluative Conclusion

Functionally, The Gherkin successfully provides flexible, bright office spaces thanks to its central core and lack of perimeter columns. Structurally, the building represents a major achievement in open shell structure technology. The Diagrid proved an extremely efficient way to transfer lateral loads, offering high structural security through its redundant design. Performance data confirms the building’s energy use is considerably lower than that of conventional towers, establishing it as a successful functional model in Architecture Around the World.

Conclusion and Future Directions

The Gherkin represents a crucial moment in skyscraper design, successfully blending engineering skill with environmental solutions. Its pioneering use of the Diagrid has influenced many subsequent high-efficiency Projects globally. The future trends set by this building favor designing towers that get strength from their geometric form, rather than just material mass. Furthermore, the design promotes the continued integration of vertical natural ventilation systems into high-rises to reduce their carbon footprint. Ultimately, the building remains a leading example of engineering supporting functional beauty.

✦ ArchUp Editorial Insight

The Gherkin, formally 30 St Mary Axe, is a pioneering structural achievement in the Ecological Skyscraper Architecture style. The core Structural Innovation lies in the use of the External Diagrid system. This steel network not only functions as an aesthetic element but as the primary structural system, efficiently transferring all vertical and lateral (wind) loads directly to the foundations. This resulted in approximately 20% less steel usage compared to conventional towers and eliminated the need for internal perimeter columns, providing great flexibility in office planning. Functionally and Sustainably, the building was designed with a spindle shape to reduce wind pressure variance by about 50%. Furthermore, the engineers integrated a unique system of spiraling “Light Wells” or “Air Chimneys” that cut vertically through the structure every six floors. These shafts function as a part of the Passive Natural Ventilation system, allowing deep daylight penetration and aiding in the circulation of cool air, which significantly reduces the reliance on mechanical cooling and proves the building’s environmental efficiency. The Gherkin thus successfully achieved an exceptional balance between structural efficiency, iconic aesthetic, and environmental responsibility.
