The Building That Sees You
When Thermal Cameras Penetrate the Wall, Redesigning Architectural Privacy Becomes an Ethical Obligation, Not an Aesthetic Option
There is a sharp contradiction at the heart of contemporary architectural practice. Designers spend weeks selecting glazing with a precise visible-light reflectance value, or calibrating the height of a screen wall to interrupt a sightline from the street, while cameras operating in the long-wave infrared band are trained on that same building and render every one of those decisions irrelevant in a single pass. A thermal camera does not see what the human eye sees. It detects the radiant heat emitted by the human body at thirty-seven degrees Celsius — heat that migrates through double-glazed units, that glows behind a drawn curtain, that announces itself within the very space the architect designed to be, in their own understanding, secure and protected.
This is not a speculative scenario. It is the precise physical description of what long-wave infrared imaging technology does, operating across a waveband that runs from roughly eight to fourteen micrometers, where objects at room temperature emit thermal radiation without requiring any external light source whatsoever. What the security and surveillance discourse — which has monopolized this conversation for decades — has consistently failed to ask is the question that belongs specifically to the architect: if thermal imaging invalidates every conventional notion of visual privacy, what must change in the building envelope itself, in the selection of materials, and in the ethics of the profession?
A Physics That Recognizes No Walls
Understanding the scale of the problem requires beginning with the physical principle that makes thermal imaging fundamentally different from any prior visual surveillance technology. Visible-light cameras — from conventional closed-circuit television systems to smartphone cameras — depend on light reflected from surfaces. They require a light source, they fail in darkness, and they operate according to a visual logic that human beings share with them. A thermal camera, by contrast, reflects nothing. It measures thermal radiation emitted directly by the object itself, radiation traveling in a waveband entirely distinct from visible light.
Extensive comparative research — most notably the study conducted by González and colleagues in 2016 on the CVC-14 dataset — demonstrated that far-infrared cameras outperform their visible-spectrum counterparts even in full daylight, across every test conducted, not only in low-light environments. More critically, visible-spectrum cameras could detect pedestrians at night only within the illuminated patches of a scene, while a human being — being warmer than the surrounding environment — remained thermally legible under all conditions. Translated into architectural terms, this means that darkness is no longer a barrier. That subdued lighting in a private zone no longer guarantees freedom from detection. That retreating to an unlit corner is no longer sufficient.
Researchers have pressed further still. Studies by St-Laurent, Maldague, and Prevost — among the earliest work to integrate thermal and visible imaging in uncontrolled outdoor environments — documented that thermal cameras produce clearer images than visible cameras even in fog or dust, noting that the long-wave infrared band is less affected by atmospheric scattering than visible light, making buildings thermally legible precisely when they disappear visually. At that point the problem shifts from a security question to an urban and ethical one: the building envelope, with all its carefully selected layers and materials, becomes transparent to an eye that reads heat.
The Envelope Made Transparent Without Consent
Over the past century, architects developed a rich repertoire of design tools for preserving visual privacy: window placement, enclosed balconies, deep reveals, opaque glazing panels, external blinds, and the orientation of a building away from public sightlines. Every one of these instruments rests on the same embedded assumption — that privacy means visual privacy, and that blocking visible light is sufficient to protect an occupant from the gaze of the exterior.

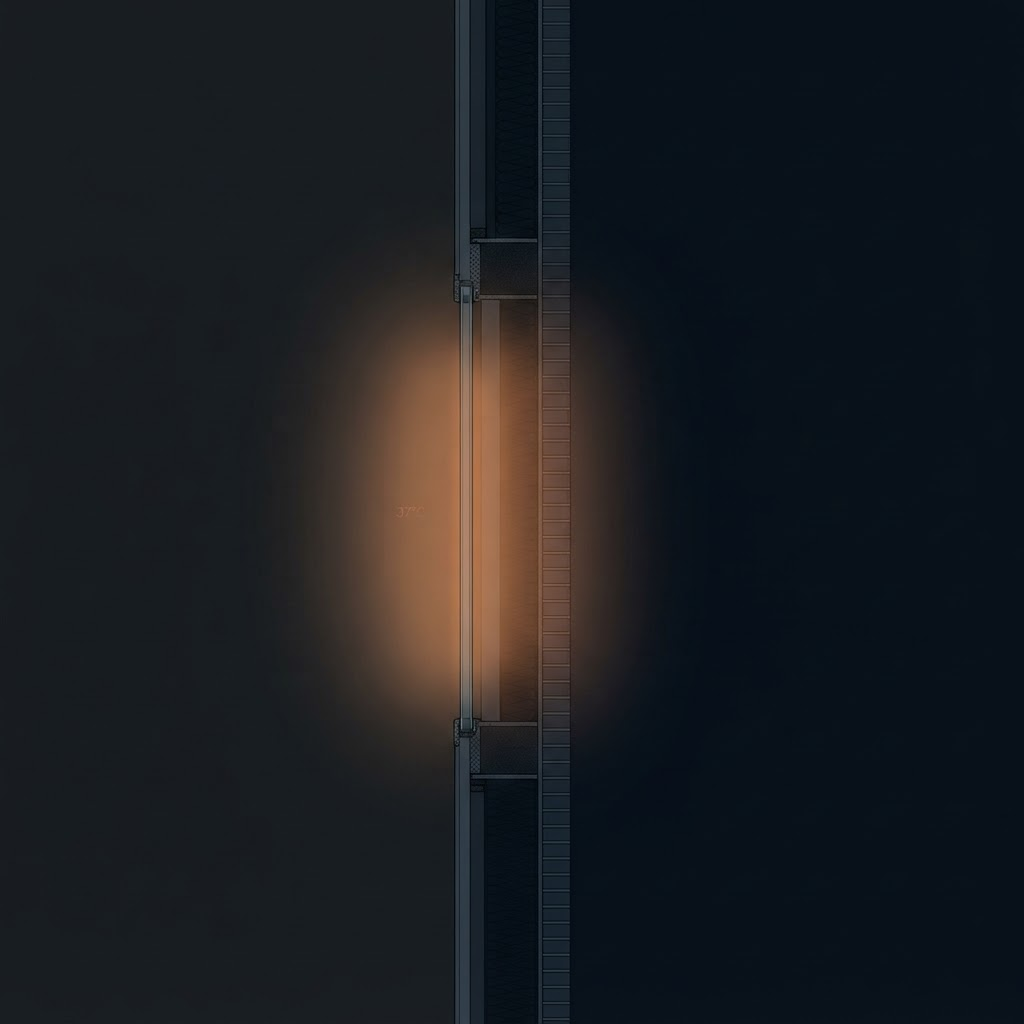

Thermal imaging dismantles that assumption at its foundation. Insulated double-glazed units with evacuated cavities, now standard in high-performance envelopes, attenuate infrared radiation partially but not completely. The aluminum composite systems used in unitized curtain walls reflect incoming thermal radiation from outside, yet absorb and re-emit the body heat of an occupant close to the interior face. Heavy masonry elements — concrete, brick — absorb heat during the day and re-emit it at night in patterns that can be analyzed to infer what is happening behind them. Surveillance researchers have observed in practice that the phenomenon of thermal reflection from wet surfaces generates false detections: a rain-wet wall redistributes the human thermal signature arriving from inside the space, potentially revealing an occupant’s presence through reflection rather than through direct body emission.
No internationally recognized building code today — and no material specification — contains any requirement relating to the thermal opacity of the architectural envelope as a privacy criterion. Thermal building codes classify the thermal transmittance of walls and windows for energy-efficiency purposes, protecting occupants from cold and heat. No one has yet asked the parallel question: how much human body heat does this wall transmit to a camera positioned outside it?
When Material Becomes an Instrument of Privacy or Its Opposite
At some point designers will recognize that the selection of envelope materials has acquired an additional layer of consideration. Beyond structural performance, energy efficiency, aesthetic intent, and environmental compatibility, there is a dimension that has not yet acquired its formal name within the academic discipline: radiant thermal performance as a privacy instrument.
As Corsi clarifies in his comprehensive review of infrared security technologies, thermal imaging has become the backbone of security surveillance systems for detecting personnel and vehicles in complete darkness, and has reached wide deployment following the arrival of uncooled microbolometer focal-plane arrays that made mass-scale production economically viable. The technology that two decades ago was confined to military operations is now accessible to civilian installations, law enforcement agencies, and smartphone applications equipped with thermal sensors. That proliferation transforms what were once exceptional concerns into ordinary, daily ones.
What the technical research reveals opens a legitimate question to the building materials industry. Can dual-function insulating panels be developed that combine energy performance with a reduction in the outward transmission of human thermal signatures? Can materials with high thermal absorptance and low emittance — some categories of reflective coating developed originally for roof cooling — function as a thermal-visual barrier in the figurative sense? And is there a role for double-skin facade configurations, where an intermediate thermal buffer zone between the two skins degrades the human body signal before it reaches an external sensor?
These are not distant theoretical questions. They are questions that the architect alone — by virtue of controlling envelope decisions — has the authority to answer.
Design Against Visibility: A Discipline Waiting for Its Name
What might be called counter-thermal-visibility design extends well beyond the question of materials to raise a wider set of spatial questions. The first concerns interior planning: if a thermal camera can detect human body heat at distance through a glazed surface, then the distance between an occupant and the exterior facade becomes a privacy strategy rather than a merely functional arrangement. New planning typologies may emerge accordingly — a “thermal buffer zone” separating sensitive spaces from the outer envelope by an interstitial layer.
The second question addresses urban design. In high-density environments where buildings face one another across narrow separations, the thermal sightline between two adjacent facades becomes a planning matter that closely resembles existing concerns about daylighting and traditional rights of prospect — issues that urban legislation has long addressed through setback requirements and height controls.
The most pressing question involves the deployment of this technology within civic architectural space itself. Markets, airports, transit terminals, and healthcare facilities are already installing multispectral surveillance infrastructures. Research reviewed by Sadic and colleagues in their 2025 survey indicates that lightweight, low-cost thermal sensors have become an explicit target for edge-network deployment research, meaning that thermal cameras will propagate through public architectural space at the same pace that wireless access points and charging stations have done. When that proliferation is complete, the question will no longer be “Is there a thermal camera here?” It will be: “Was this space designed to allow me to occupy it without being thermally classified?”
Professional Ethics Before a Question That Has Not Yet Been Asked
In the history of architecture, ethical debates about surveillance have generally centered on questions of public space design: how does a layout reproduce social relations? Does a particular plan configuration lead to the exclusion of certain groups, or generate a sense of security? Conventional surveillance cameras entered that conversation as furniture within the built environment. The arrival of thermal imaging changes the nature of the question entirely.
The new question is not about what happens inside the space, but about what happens through the material envelope of the space itself. Professional responsibility branches here in unprecedented directions. An architect selecting envelope materials is making — usually without being aware of it — a decision about how much human body heat will migrate to the exterior of the building and become available to any thermal camera directed toward it. Does that decision fall within the scope of the architect’s professional responsibility? The logical answer is yes, because architecture has always been responsible for protecting the rights of occupants — and the right not to be involuntarily thermally disclosed is a natural extension of the right to privacy that the profession has consistently honored.
A further technical dimension compounds this, observed by researchers working on surveillance security. A study by Raghuraman and colleagues in 2015 demonstrated that anti-forensic frameworks can generate photorealistic three-dimensional streams showing individuals performing actions they never carried out, and that low-resolution video footage — comparable to recordings produced by contemporary surveillance systems — could not be distinguished from authentic footage by observers in seventy-six percent of cases. This means that the building of the near future is not only exposed to the risk of involuntary thermal detection; its visual and thermal records are susceptible to fabrication to a degree that makes them unreliable as evidence in either direction.
Against this picture, the ethical charter of the architectural profession — which obliges the architect to protect the health, safety, and psychological well-being of users — appears to require a chapter that has not yet been written, one concerned with thermal privacy as an architectural right that originates at the drawing board.
Toward a Building Code for the Age of Thermal Vision
Nothing in the foregoing amounts to a call for the wholesale rejection of thermal surveillance technologies. The research consensus is clear that fusing thermal cameras with their visible-spectrum counterparts — through the attention-driven, illumination-aware fusion methodologies developed by Yan and colleagues in their 2023 study — produces detection systems of superior performance across the full day-night cycle and in variable weather, systems that carry genuine security value in airports, border installations, and critical infrastructure that cannot reasonably be dismissed. But technological expansion has limits, and those limits should be defined jointly by regulation and by design.
What can be proposed — as a preliminary framework for professional debate — operates across three interlocking levels. The first is the materials level: incorporating an “envelope thermal emittance” coefficient into the specification schedules for residential, medical, and educational buildings, not only for energy reasons but for privacy reasons. The second is the planning level: formulating thermal setback requirements analogous to daylighting and ventilation standards in sensitive spatial programs. The third is the professional ethics level: requiring an assessment of the radiant thermal impact of any surveillance system integrated into a public building’s design, alongside the environmental and social impact assessments already required.
What began as a technical inquiry into the comparison of two camera types closes with a profound architectural question: who holds the right of visibility within the built environment? If the historical answer belonged to the world of light, shadow, and walls, the answer now and in the future belongs equally to the world of heat, radiation, and the materials an architect selects. The wall that protects you is no longer only a wall that blocks light — it must now also be capable of concealing the thermal trace you leave in space.
✦ ArchUp Editorial Insight
The thermal privacy problem is not, at its structural core, a materials science problem or a surveillance technology problem — it is a liability assignment problem that the building industry has not yet been forced to price. Every specification decision an architect makes about an envelope — glazing type, cavity depth, cladding emittance, facade layering — has always carried an implicit thermal disclosure coefficient, a measure of how much of the occupant’s bodily presence the wall transmits outward. That coefficient has existed for as long as infrared physics has existed. What changed is not the physics but the cost of reading it: uncooled microbolometer arrays collapsed the price of thermal detection from military procurement budgets to consumer electronics, and in doing so they converted a theoretical vulnerability into an operational one without triggering a single revision to any building code, any envelope specification standard, or any professional liability framework. The architect who selected that curtain wall system last year made a thermal disclosure decision without knowing it, and the occupant who absorbs the consequence of that decision — involuntary legibility to any sensor directed at the facade — had no presence in the specification meeting where the glazing schedule was approved. That structural pattern, in which the decision-maker exits before the consequence materializes and the consequence is absorbed by the party who had no seat at the table, is one this archive has traced across contexts as different as housing tenure and maintenance investment and the sequencing of construction risk — and its appearance here, encoded not in a contract clause but in the emittance value of a panel, confirms that the envelope is not only a thermal boundary. It is an unacknowledged governance instrument, and its governance function has outpaced the profession’s awareness of it.
References
St-Laurent, L., Maldague, X., and Prevost, D. “Combination of Colour and Thermal Sensors for Enhanced Object Detection.” 10th International Conference on Information Fusion, IEEE, 2007.
Sadic, N. M., Shalaby, W. A., El-Dolil, S., Abd El-Samie, F. E., Dessouky, M. I., and Elkaffas, S. M. “Utilization of Infrared Images for Object Detection: A Survey.” Journal of Optics, 2025.
Raghuraman, S., Bahirat, K., and Prabhakaran, B. “Evaluating the Efficacy of RGB-D Cameras for Surveillance.” IEEE International Conference on Multimedia and Expo, IEEE, 2015.
Ippalapally, R., Mudumba, S. H., Adkay, M., and Nyapaathi, V. H. “Object Detection Using Thermal Imaging.” IEEE 17th India Council International Conference, IEEE, 2020.
Yan, C., Zhang, H., Li, X., Yang, Y., and Yuan, D. “Cross-Modality Complementary Information Fusion for Multispectral Pedestrian Detection.” Neural Computing and Applications, 2023.
Zhang, H., Fromont, E., Lefevre, S., and Avignon, B. “Guided Attentive Feature Fusion for Multispectral Pedestrian Detection.” IEEE Winter Conference on Applications of Computer Vision, IEEE, 2021.
Chen, Yuxi, and Han, Chongzhao. “Night-Time Pedestrian Detection by Visual-Infrared Video Fusion.” 7th World Congress on Intelligent Control and Automation, IEEE, 2008.
Li, S., Cui, J., Ye, M., Li, T., and Tian, L. “Thermal Pedestrian Detection Based on Different Resolution Visual Images.” Signal, Image and Video Processing, 2023.
Corsi, C. “Infrared: A Key Technology for Security Systems.” Advances in Optical Technologies, 2012.
Bisbee, T. L., and Pritchard, D. A. “Today’s Thermal Imaging Systems: Background and Applications for Civilian Law Enforcement and Military Force Protection.” IEEE 31st Annual International Carnahan Conference on Security Technology, IEEE, 1997.
Dumpert, D. T., and Dirksen, S. “Networked Thermal Imaging and Intelligent Video Technology for Border Security Applications.” SPIE Proceedings, International Society for Optics and Photonics, 2006.
González, A., Fang, Z., Socarras, Y., et al. “Pedestrian Detection at Day/Night Time with Visible and FIR Cameras: A Comparison.” Sensors, 2016.
Mouats, T., and Aouf, N. “Fusion of Thermal and Visible Images for Day/Night Moving Objects Detection.” Sensor Signal Processing for Defence, IEEE, 2014.
